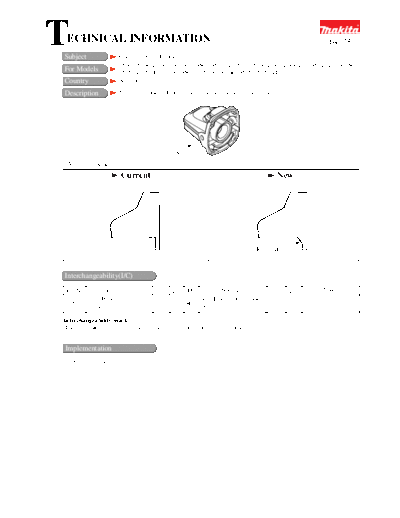

TECHNICAL INFORMATION
Subject                Change of Gear Housing
                                                                                                    64723

                       9560, 9560CV, 9561, 9561CV, 9562, 9562CV, 9563, 9563CV, 9564, 9564CV, 9564CVL, 9565C,
For Models             9565CV, 9560C, 9561C, 9562C, 9563C, 9564C, 9565, 9565CVL
Country                All countries

Description            To reinforce Gear Housing, ribs have been added as shown below.




                                             A

                       Current                                                        New




                                                                              Rib is added.



Interchangeability(I/C)
Item No.        Current part               Q'ty I/C           New part                    Q'ty    Note
           Gear Housing Complete                       Gear Housing Complete
    003                                      1                                                1
           151991-9                                    153381-2

Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.


Implementation
To be informed later
