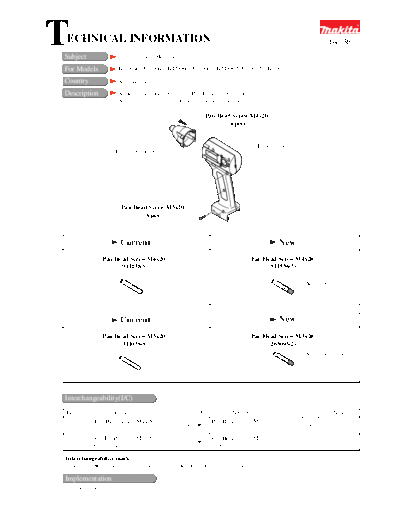

Image preview - the first page of the document
64736-WW-1


>> Download 64736-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                 Change of Pan Head Screws
                                                                                                         64736


For Models              BTD040, BTD042, BTD060, BTD061, BTD062, BTW070, BTW072

Country                 All countries
Description             Adhesive has been put on the Pan Head Screws illustrated below.
                        Accordingly their part numbers have been changed.

                                                          Pan Head Screw M4x20
                                                                 (4 pcs)


                                                                              Housing Set
                    Hammer Case Set




                         Pan Head Screw M3x20
                                (6 pcs)



                        Current                                                           New
               Pan Head Screw M4x20                                         Pan Head Screw M4x20
                    (911138-5)                                                   (911536-3)

                                                                                                Adhesive applied




                        Current                                                           New
               Pan Head Screw M3x20                                         Pan Head Screw M3x20
                    (911038-9)                                                   (265095-2)
                                                                                                Adhesive applied




Interchangeability(I/C)
 Item No.        Current part                    Q'ty I/C          New part                     Q'ty      Note
            Pan Head Screw M4x20                            Pan Head Screw M4x20
    011                                           4                                              4
            911138-5                                        911536-3
            Pan Head Screw M3x20                            Pan Head Screw M3x20
    037                                           6                                              6
            911038-9                                        265095-2

Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

Implementation
To be informed later.
