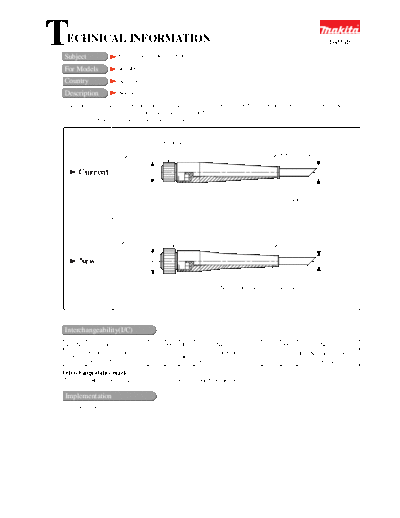

64946-WW-1


>> Download 64946-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Connection Cord
                                                                                                            64946


For Models             4604D

Country                All countries
Description            See below.

1. To increase flexibility of Connection Cord, its material has been changed from rubber to polyvinyl chloride. And a gap
   between the Cord and Cord Guard has been eliminated.
2. For easy tightening, Coupling has been enlarged.


                                          Coupling

                         o 23 mm (7/8")                                              o 15.5 mm (5/8")

      Current


                                                              Gap between Cord and Cord Guard



                                            Coupling

                        o 30 mm (1-3/16")                                            o 12.3 mm (1/2")

      New


                                                               No gap between Cord and Cord Guard




Interchangeability(I/C)
Item No.       Current part               Q'ty I/C           New part                    Q'ty           Note
           Connection Cord                  1          Connection Cord                    1     Part No. 661978-8
    A12
           661978-8                                    661978-8                                 remains unchanged
Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

Implementation
To be informed later
