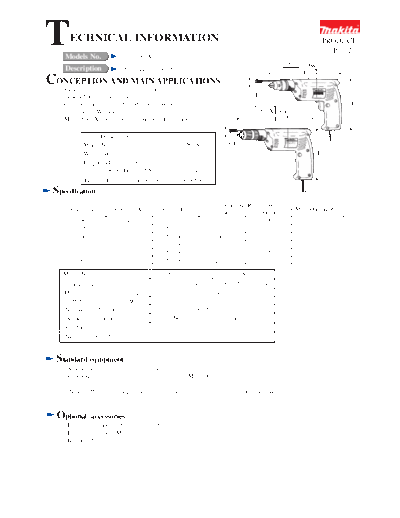

Image preview - the first page of the document
>> Download 6501X-TE documenatation <<
Text preview - extract from the document
T ECHNICAL INFORMATION
Models No. 6501, 6501X
PRODUCT
P1/2
6501 W
Description 6.5 mm High speed drill
L
CONCEPTION AND MAIN APPLICATIONS
Exceptionally fast, clean drilling of holes with Chuck ability : mm (")
these 4,500 rpm. performer. CH 0.8 - 6.5mm(1/32 - 1/4)
Compact and light weight body but, equipped with H
powerful 230W motor. 6501X W
Model 6501X is equipped with keyless drill chuck. L
Dimensions : mm ( " )
Model No. 6501 6501X CH Chuck ability : mm (")
0.8 - 6.5mm(1/32 - 1/4)
Width ( W ) 63 (2-1/2) 63 (2-1/2) H
Height ( H ) 141 (5-9/16) 141 (5-9/16)
Center height(CH) 16 (5/8) 19 (3/4)
Length ( L ) 206 (8-1/8) 219 (8-5/8)
Specification
Continuous Rating (W)
Voltage (V) Current (A) Cycle (Hz) Max. Output(W)
Input Output
100 2.4 50 / 60 230 120 160
115 2.1 50 / 60 230 120 160
200 1.2 50 / 60 230 120 160
220 1.1 50 / 60 230 120 160
230 1.0 50 / 60 230 120 160
240 1.0 50 / 60 230 120 160
Model No. 6501 6501X
Chuck ability : mm (") 0 - 6.5 (0 - 1/4) 0.8 - 6.5 (1/32 - 1/4)
Drilling in Steel 6.5 (1/4)
capacity : mm ( " ) in Wood 9.0 (3/8)
No load speed : (min -1= rpm) 4,500
Keyless drill chuck No Yes
Cord length : m ( ft ) 2.0 (6.6)
Net weight :Kg (lbs ) 0.9 (2.0)
Standard equipment
* Stopper pole set ......................... 1 set
* Chuck key .................................. 1 pc. (only for Mod.6501)
< Note > The standard equipment for the tool shown may differ from country to country.
Optional accessories
* Drill bit (for steel) 1.5, 2, 3, 4, 5, 6, 6
* Drill bit (for wood) M9
* Keryless drill chuck set
Features and benefits P2/2
Fine drilling at high speeds, 4,500 rpm.
6501
Incredible light
weight : only 0.9 Kg (2.0 lbs)
Chuck ability : mm (")
0.8 - 6.5mm(1/32 - 1/4)
The rubber cap is installed on the top Palm fitting pistol type grip
of the stopper pole (depth gauge) for and compact body for
protection of the materials. comfortable work.
6501X
Chuck ability : mm (")
0.8 - 6.5mm(1/32 - 1/4)
Keyless drill chuck
Comparison of products
Manufacturer MAKITA Competitor A Competitor B
Model No. 6501 6501X Model A Model B
Power input ( W ) 230 240 170
No load speed : (min -1= rpm) 4,500 2,700 3,200
Drilling in Steel 6.5 6.5 6.5
capacity : mm in Wood 9
Keyless drill chuck No Yes No No
Overall length : mm 206 219 210 204
Net weight :Kg (lbs ) 0.9
Protection from by double insulation
electric shock by grounding
Standard equipment Chuck key Stopper pole set Chuck key Chuck key
Stopper pole set
