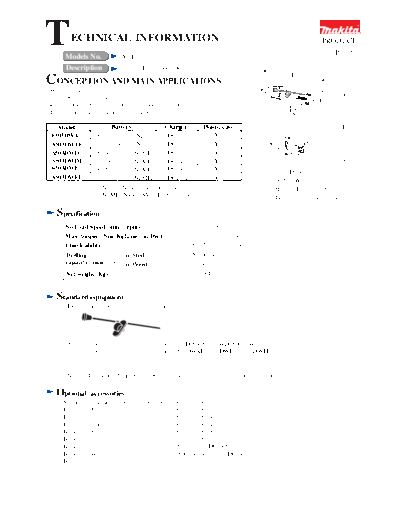

Image preview - the first page of the document
6503D-TE


>> Download 6503D-TE documenatation <<

Text preview - extract from the document
T        ECHNICAL INFORMATION
       Models No.             6503D
                                                                                                                 PRODUCT
                                                                                                                     P1/5

       Description            Cordless High-Speed Drill
                                                                                                     L
CONCEPTION AND MAIN APPLICATIONS
Very compact and lightweight,
9.6V cordless high-speed drill,
ideal for use of drilling rivet holes into steel lamination.
The variations of this model are as follows.

   Model                  Battery                  Charger           Plastic case                                       H
 6503DWA            9122              Ni-cd         DC1411               Yes
 6503DWAE            9122 /2pcs.      Ni-cd         DC1411               Yes
                                                                                                W
 6503DWD            9134             Ni-MH          DC1411               Yes
 6503DWDE            9134 /2pcs.     Ni-MH          DC1411               Yes
 6503DWF            9135             Ni-MH          DC1411               Yes                         Dimensions : mm ( " )
 6503DWFE            9135 /2pcs.     Ni-MH          DC1411               Yes
                                                                                                Width ( W )   77 (3)
                       Ni-cd ; Nickel Cadmium battery                                           Height ( H ) 232 (8-7/8)
                       Ni-MH; Nickel-Metal Hydride battery                                      Length ( L ) 180 (7-1/8)

   Specification
       No Load Speed (min-1=rpm)                                    0 -2,200
       Max. torque : Nm (Kgf.cm) [ in. lbs ]                        3.3 ( 34 ) [ 29 ]
       Chuck ability                                           0.8 -6.5mm(1/32"-1/4")
       Drilling                  in Steel                      6.5mm(1/4")
       capacity : mm ( " )       in Wood                       12mm(15/32")
       Net weight (Kg)                                         1.3 (2.9 lbs)


   Standard equipment
     * Depth gauge assembly ................... 1 set




      * Battery cover ................................... 1 pc. (6503DWA, 6503DWD, 6503DWF)
      * Battery cover .................................. 2 pcs.(6503DWAE, 6503DWDE, 6503DWFE)


     < Note > The standard equipment for the tool shown may differ from country to country.

  Optional       accessories
      Set plate for batttery 9100, 9102, 9102A          Charger DC9710
      Battery 9100                                      Charger DC1201
      Battery 9102                                      Charger DC1470
      Battery 9102A                                     Charger DC1411
      Battery 9120                                      Charger DC1801
      Battery 9122                                      Charger DC9711
      Battery 9133                                      Fast charger DC1439
      Battery 9134                                      Automotive charger DC1422
      Battery 9135
   Features       and benefits                                                                         P2/5

High speed (2,200min-1) for fast drilling

Small and compact
Weighing only 1.3 kgs for operator comfort.             Depth gauge assembly
                                                        provides constant drilling depth
                                                        and prevents bit breakage
              1/4" Keyless chuck                                               Externally Accessible Brushes
                                                                               Long Life D31 Motor



                   Variable Speed with
                   Easy Control
                                                                                Push Button for Reversing




                                                                              Easy-to-Remove, 9.6V
                                                                              Push Button Type Battery
                                                                            easily detachable battery by
                                                                            merely pressing side retainers

   Comparison        of products
                                                                               Makita
 Specifications                                                                 6095D             6222D
                                     6503D             6204D
 Voltage(V)                                                           9.6
 Motor                               D31-23            D31-16                 RS-750SH            HC683LG
 No load speed         High                           0~1,100                  0~1,100
 : (min -1= rpm)                   0~2,200                                                          0~700
                       Low                             0~350                    0~400
 Drilling           in Steel        6.5 (1/4)          10 (3/8)                 10 (3/8)           10 (3/8)
 capacity: mm ( " ) in Wood        12 (15/32)         21 (13/16)               18 (11/16)          15 (9/16)
 Externally Accessible
 Brushes                              Yes               Yes                       No                 No
  Depth Gauge                         Yes                 No                        No                No
  Torque adjusting               Not adjustable   16 and drill mode         5 and drill mode   5 and drill mode
  Overall length: mm ( " )        180 (7-1/8)         197 (7-3/4)             270 (10-5/8)         202 (8)
  Net weight : kg ( lbs )           1.3 (2.9)          1.5 (3.3)                1.7 (3.7)          1.4 (3.1)
Comparison       of products                                                                                  P3/5


The following charts are the results of drilling tests; drilling in steel of 2.0mm in thickness.
Numbers in charts below are relative values when setting Mod.6095D's capacity(1.3Ah) as 100.


                                                                  Performance for full charged
Drilling Speed                                                    battery pack

              slow                        fast                        less                           more

1) With a drill bit of
