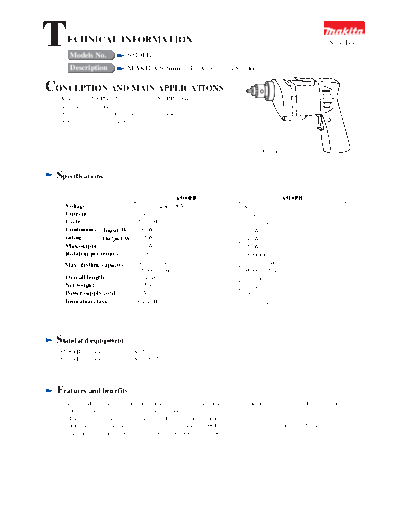

Image preview - the first page of the document
6510PB-TE


>> Download 6510PB-TE documenatation <<

Text preview - extract from the document
T    ECHNICAL INFORMATION
      Models No.             6510PB
                                                                                                              New Tool


      Description             MAKITA 6.5mm(1/4") & 10mm(3/8") drill

CONCEPTION AND MAIN APPLICATIONS
   Models of 6500PB(6.5mm drill) and 6510PB(10mm drill)
   have been developed as drills featuring safety, easy use, and
   durability usable by professionals to compete with other
   products in overseas markets.



                                                                                   Outside drawing



  Specifications
                                                 6500PB                                    6510PB
    Voltage                       single phase 100V                         Same as the left
    Current                       3A                                        3.5A
    Cycle                         50-60Hz                                   Same as the left
    Continuous Input(W)           280W                                      330W
    rating       Output(W)        105W                                      140W
    Max.output                    175W                                      250W
    Rotation per minute           2300 r.p.m.                               1800/min
                                  Iron 6.5mm                                Iron 10mm
    Max. drilling capacity
                                  Wood 13mm                                 Wood 15mm
    Overall length                224mm                                     232mm
    Net weight                    1.29kg                                    1.32kg
    Power supply cord             2.5m                                      2.5m
    Insulation class              Class II                                  Same as the left




  Standard equipment
   6500PB chuck key complete S6.5 (7632011)
   6510PB chuck key complete S10(7632101)




  Features and benefits
   1. This product is safe for electric shock due to the housing made of resin and double insulation. Light weight
      and compactness ensure easy use of this model.
   2. The use of ball bearing has improved durability of this product.
   3. Adopting the same motor housing and carry hook as 6000R has ensured easy use of the drill. Problems of
       machine space in working in high or narrow places was also resolved.
  Capacity
1) The drilling capacity of 6510PB is almost the same as 6400 and 6000R for 10mm iron drilling as shown in the
   following comparison table.
  Material                   Aluminum plate                Cast iron         Mild steel plate
 Test method              Through- drilling time    Trilling depth        Trilling depth
                          for thickness 17mm        for 30 sec.           for 60 sec.
             6510PB       18 sec.                   13mm                  6mm
 Model       6400         17 sec.                   12mm                  7mm
             6000R        18sec.                    13mm                  6mm


2) The drilling capacity of 6500PB and 6100 for 6.5 mm iron is shown in the following comparison table.
  Material                   Aluminum plate                Cast iron         Mild steel plate
 Test method               Through- drilling time   Trilling depth        Trilling depth
                           for thickness 17mm       for 30 sec.           for 60 sec.
             6500PB        17 sec.                   23mm                 17 sec.
  Model
             6100          12 sec.                   25mm                 18 sec.

(Above comparison tests was done in the condition of the machine pressed horizontally with the
 pressure of approx.20kg)




  Repair
(1) Press-in of helical gear
  Helical gear 63 is pressed in the spindle. Make sure to press in helical gear correctly to avoid
   gear entangling.


Parts Differences in 6500PB and 6510 PB
The same parts are used for both models except the following parts;
Drill chuck, Spindle, Armature, Field, + hexagon bolt for fixing the field

STANDARD EQUIPMENT Chuck key complete
