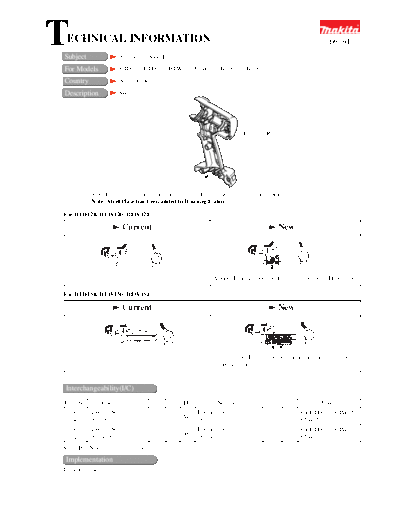

66791-WW-1


>> Download 66791-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Addition of Steel Plate
                                                                                                             66791


For Models             BTD120, BTD150, BTW120, BTW121, BTW150, BTW151

Country                All countries

Description            See below.




                                                                          Housing R




           Steel Plate has been added to this portion of Housing R. See illustrations below for details.
           Note: Steel Plate has been added to Housing L also.

For BTD120, BTW120, BTW121

                        Current                                                          New




                                                             A Steel Plate has been added to this portion of Housing R.

For BTD150, BTW150, BTW151

                        Current                                                          New




                                                                 Two Steel Plates have been added to this portion of
                                                                 Housing R.


 Interchangeability(I/C)
Item No.       Current part               Q'ty I/C          New part                       Q'ty            Note
    003    Housing Set                               Housing Set                                  For BTD150, BTW150,
                                            1    Yes                                         1
    047    183368-0                                  183368-0                                     BTW151
    001    Housing Set                               Housing Set                                  For BTD120, BTW120,
                                            1    Yes                                         1
    042    183347-8                                  183347-8                                     BTW121
Note: Part Nos. remain unchanged.
