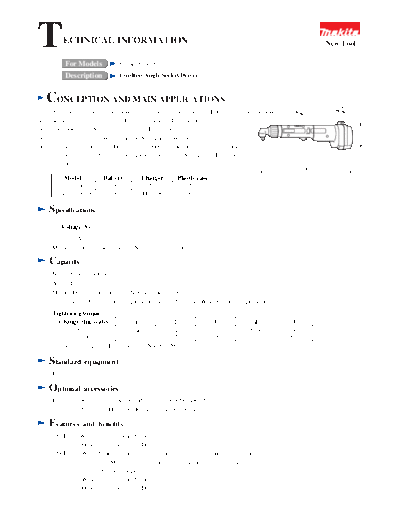

Image preview - the first page of the document
6704D-TE


>> Download 6704D-TE documenatation <<

Text preview - extract from the document
T        ECHNICAL INFORMATION                                                                                    New Tool

          For Models            6704D,6706D
          Description           Cordless Angle Socket Driver



   CONCEPTION AND MAIN APPLICATIONS                                                                (1-3/4")       (2-5/16")
                                                                                                                     58
                                                                                                      45
6706D is a new Cordless angle socket driver made by adding to 6702D Control circuit for Auto-                            (3-13/16")
stop mechanism detecting the rest Battery capacity . The total length has                                                   97
been made 44mm longer comparing to 6702D to store Control circuit.
Also, plastic coating has been applied on Set plate to prevent it from damaging car
body. 6704D is a model with Housing of 6706D, and the spec. and performance
are the same as those of 6702D except the total length and Set plate. Both are
for export only.                                                                                    (15-9/16")
                                                                                                      396
          Model          Battery       Charger        Plastic case
        6704D,6706D       9100           No               No
      6704DW,6706DW       9100         DC9700             Yes

    Specifications
        Voltage(V)
           9.6V
     Motor    D.C. magnet motor,     Ni-Cad battery 9100

    Capacity
     No load speed : 400 R/pm
     Angle drive : 9.5mm
     Motor : D.C. magnet motor, Ni-Cad battery 9100
     Two types W/Tightening torque adjustment of 5-degrees W/Tightening torque adjustment of no degree.
     Tightening torque
       Change ring scales             1            2                   3           4                5
             (Nm)                  (1.96)        (3.43)              (4.71)      (5.88)          (7.84)
             kgfcm                   20            35                  48          60              80
     Tightening available : Hex.head bolt, Nut M4~M6

    Standard     equipment
     Battery cover

    Optional     accessories
     Battery 9100, 9102, 9102A Rapid charger DC9700, DC9701,
     9-min-rapid charger DC1209, Rapid car charger DC1412

    Features     and benefits
     6704D 1. W/ Set plate prevented from damaging car body
           2. Others are same as 6702D
     6706D 1. When Battery capacity has become a little , it stops automatically the
              current and Motor will not work even if you pull Switch lever to prevent it from
              weak tightening torque.
           2. W/Set plate prevented from damaging car body.
           3. Others are same as 6702D.
Comparison        chart
 Different points are compared in the following chart. Other points are same as those of 6702D.
Spec.                             Model              6704D                              6706D                               6702D
Auto-stop detecting rest Battery capacity             No                                    Yes                              No
                                                 (159/16")                                                             (137/8")
            Total length                         396mm                                                                 352mm
                                                 (3.3lbs)                                                              (3.1lbs)
              Net weight                          1.5kg                                                                 1.4kg
              Set plate                      W/plastic coating                                                W/out plastic coating




Repair
 1. Circuit diagram 6704D,6706D


                                                                                     Main switch
                                                                             COM
                                                                            NC NO
          6704D
                                                             Blue
                    Red mark            M-
         M+
                                                             White                           Orange
                          M-
                                        M+
                               D.C. motor
                                                                       5                4                         T+    T-
                                                             Rib         F R
          D.C. motor                                                   1   2            3

                                                                                                              Battery holder
                                                       Black                                Red

                                                                                            Purple


          6706D                                                                     Main switch
                                                                            COM                Orange
                                                                           NC NO                                    Control
                    Red mark                                                                                        circuit
         M+                                  Black                                                Purple
                                      M-
                       M-
                                                             Purple
                                                                                                               Black
                               D.C. motor White
                                      M+                                                                    Red
                               D.C. motor                          5                4
          D.C. motor
                                                                     F R                              Red
                                                                                                               T+      T-
                                                                   1   2            3


                                                                                                            Battery holder
                                                                                    Orange
          2. Wiring (how to store in Housing) 6704D,6706D
             < How to store Lead wires>



 Pass Lead wires(black/blue) through between Boss
 and Inner wall like the Figure.

                                                    Pass Lead wires (black/blue/orange) through between Boss
                                                    and Rib like the Figure.

                                      Boss
                   Lead wire(white)                                                   Lead wire(orange)


                                                                                Rib




                             D.C. Motor                                                          Lead wire(black)
                                                            Pin
                                                            Switch




                                                                                 Lead wire (blue)
                                Pass Lead wire(white) through between Boss
                                and Switch fixing pin .
Bend + terminal like this
and store it in Housing.




          < Stored Forward/Reverse change switch>


                                                           F/R change switch
                                                       R
                                                       F
          2. Wiring (how to store in Housing) 6704D,6706D
                 6706D
          < How to store Lead wires>

Pass Lead wires(black) through between Boss and Inner wall like the Figure.

                                                 Pass Lead wire(black) and two Lead wires (orange) through between Pin and
                                                 Rib like the Figure.

                                       Black
                    Lead wire(white)                                                    Lead wire(orange)


                                                                                  Rib
                                                             Boss


                               D.C. Motor
                                                             Pin
                                                             Switch




                                                                      Lead wire (purple)
                                                                                 Lead wire (red)
                                  Pass Lead wire(white) through between Boss and Switch fixing pin .

Bend + terminal like this and store it in Housing.




          < Stored Forward/Reverse change switch>


                                                            F/R change switch
                                                        R
                                                        F




         Others
          Same as 6702D
