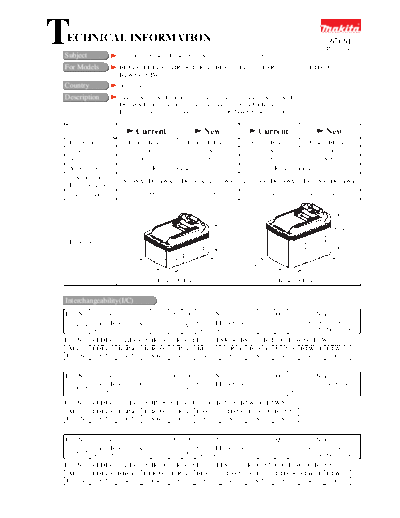

67661-WW-1


>> Download 67661-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject             Changes of Battery, Battery Charger and Plastic Carrying Case
                                                                                                                67661
                                                                                                             (Page 1 of 2)


For Models          BDF460, BHP460, BHR200, BJR240, BLS712, BLS820, BSR730, BSS730, BTD200,
                    BTW200, BTW201
Country             All countries
Description         24V 1.7Ah/3.0Ah Batteries have been replaced by 24V 2.0Ah/3.3Ah Batteries.
                    DC24SA Battery charger has been replaced by DC24WA Battery charger.
                    Plastic carrying case has been changed for DC24WA Battery charger.


                          Current                      New                    Current                        New
 Designation           Battery B2417        Battery BH2420                 Battery B2430        Battery BH2433
 Capacity                  1.7Ah                 2.0Ah                         3.0Ah                 3.3Ah
 Weight                    990 g                 1035 g                        1475 g                1505 g
 Appearance                     Remains unchanged                                   Remains unchanged
   Applicable
                     DC24SA / DC24WA           DC24SA / DC24WA           DC24SA / DC24WA            DC24SA / DC24WA
 Battery Charger
 Charging Time        30 min. / 55 min.         30 min. / 55 min.         60 min. / 90 min.           60 min. / 90 min.




                                                                                                                   96 mm
                                                              72 mm                                               (3-3/4")
 Dimensions                                                 (2-13/16")



                         87 mm                  122 mm                      87 mm                     122 mm
                        (3-7/16")              (4-13/16")                  (3-7/16")                 (4-13/16")
                                    Battery BH2420                                      Battery BH2433


Interchangeability(I/C)
Item No.       Current part               Q'ty I/C         New part                    Q'ty              Note
          Battery B2417 (1.7Ah)                    Battery BH2420 Set                         For all countries except
See below                                  1   Yes                                      1
          193127-4                                 193736-9                                   Canada, U.S.A., Mexico, Guam

Item No. for BDF460, BHP460, BHR200, BJR240, BLS820, BSR730, BSS730, BTD200, BTW200, BTW201
   Model BDF460 BHP460 BHR200 BJR240 BLS820 BSR730 BSS730 BTD200 BTW200 BTW201
 Item No.    A05      A05     A04      A02     A13      A05      A02     A01      A01     A02


Item No.       Current part               Q'ty I/C         New part                    Q'ty              Note
          Battery B2417 (1.7Ah)                    Battery BH2420 Set                         For Canada, U.S.A., Mexico,
See below                                  1   Yes                                      1
          193128-2                                 193737-7                                   Guam

Item No. for BDF460, BHP460, BHR200, BJR240, BSS730, BTD200, BTW200, BTW201
   Model BDF460 BHP460 BHR200 BJR240 BSS730 BTD200 BTW200 BTW201
 Item No.    A05      A05     A04      A02     A02      A01     A01     A02


Item No.       Current part               Q'ty I/C         New part                    Q'ty              Note
          Battery B2430 (3.0Ah)                    Battery BH2433 Set                         For all countries except
See below                                  1   Yes                                      1
          193130-5                                 193739-3                                   Canada, U.S.A., Mexico, Guam
Item No. for BDF460, BHP460, BHR200, BJR240, BLS712, BLS820, BSR730, BTD200, BTW200, BTW201
   Model BDF460 BHP460 BHR200 BJR240 BLS712 BLS820 BSR730 BTD200 BTW200 BTW201
 Item No.    A05      A05     A04      A02     A07      A12      A05      A01    A01     A02
                                                                                                                67661
                                                                                                              (Page 2 of 2)

Interchangeability(I/C)
Item No.       Current part              Q'ty I/C           New part               Q'ty                Note
          Battery B2430 (3.0Ah)                     Battery BH2433 Set                    For Canada, U.S.A., Mexico,
See below                                 1     Yes                                 1
          193131-3                                  193740-8                              Guam

Item No. for BDF460, BHP460, BHR200, BLS712, BLS820
   Model BDF460 BHP460 BHR200 BLS712 BLS820
 Item No.    A05      A05     A04     A07      A12

  Item No.          Current part              Q'ty I/C          New part             Q'ty               Note
              DC24SA Battery Charger                     DC24WA Battery Charger             BDF460, BHP460, BHR200,
     F02                                       1 Yes                                      1 BJR240, BSR730, BTD200,
              193109-6                                   193759-7                           BTW200, BTW201
              DC24SA Battery Charger                     DC24WA Battery Charger             BDF460, BHP460, BSR730,
     F01                                       1 Yes                                      1 BSS730, BTD200, BTW200,
              193110-1                                   193758-9                           BTW201
              DC24SA Battery Charger                     DC24WA Battery Charger
     F04                                       1 Yes                                      1   BTW200
              193195-7                                   193761-0
              DC24SA Battery Charger                     DC24WA Battery Charger
     F05                                       1 Yes                                      1   BTW201
              193111-9                                   193762-8
                                                         Plastic Carrying Case
              Plastic Carrying Case
     A03                                       1   No    Complete                         1   BJR240
              824659-7                                   153566-0
                                                         Plastic Carrying Case
              Plastic Carrying Case
     A03                                       1   No    Complete                         1   BHR200
              824690-3                                   153526-2
BTD200:A03 Plastic Carrying Case                         Plastic Carrying Case                BTD200
BTW200:A02                                     1   No    Complete                         1   BTW200
BTW201:A03 824593-1                                      153634-9                             BTW201
                                                         Plastic Carrying Case
              Plastic Carrying Case                                                           BDF460
     A04                                       1   No    Complete                         1
                                                                                              BHP460
              824567-2                                   153514-9
              Plastic Carrying Case                      Plastic Carrying Case
                                                                                              BSR730
     A04      Complete                         1   No    Complete                         1
                                                                                              BSS730
              152789-7                                   153612-9

Note
DC24WA Battery charger (193759-7) is for European Countries, Bhutan, Turkey, South Africa, Tahiti etc.
DC24WA Battery charger (193758-9) is for Dominican Republic, U.K. etc.
DC24WA Battery charger (193761-0) is for China.
DC24WA Battery charger (193762-8) is for Australia, New Zealand.
Plastic carrying case completes are for same countries which use DC24WA Battery charger.
Plastic carrying case completes are interchangeable as a set with DC24SA or DC24WA Battery charger.

Implementation
Since the first half of 2003.
