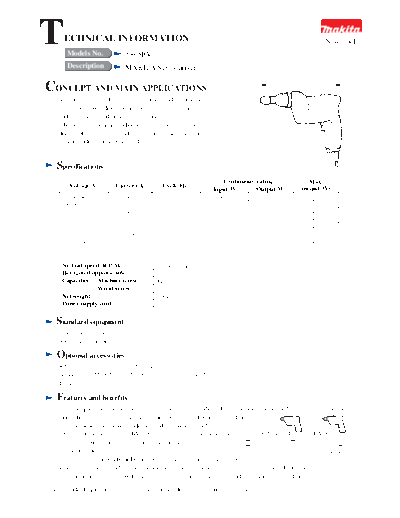

Image preview - the first page of the document
6805BV-TE


>> Download 6805BV-TE documenatation <<

Text preview - extract from the document
T    ECHNICAL INFORMATION
      Models No.               6805BV
                                                                                                                 New Tool


      Description              MAKITA Screw driver
                                                                                                     267
CONCEPT AND MAIN APPLICATIONS
   This is the screw driver for use in the wide range of
   applications including the tex screw, the hexagon bolt
   and up to the wooden screw, wherein the 6-step torque
   adjusting function is additionally built in the screw
   driver 6802BV for tex, and the low noise mechanism in
   turning under no load is adapted.



  Specifications
                                                                    Continuous rating                   Max.
       Voltage(V)           Current(A)       Cycle(Hz)                                                output(W)
                                                                 Input(W)      Output(W)
    Domestic                   4.5                                 400             190
                 100                           50-60                                                       450
    Export                     5.5                                 510             260
           115                 4.8             50-60               510             260                     450
           200                 2.8             50-60               510             260                     450
           220                 2.5             50-60               510             260                     450
           230                 2.4             50-60               510             260                     450
           240                 2.3             50-60               510             260                     450


    No load speed (R.P.M.)                0-2,500/min.
    Hexagonal opposite side               6.35 mm
    Capacities   Machine screw            M8
                 Wood screw               6.2 mm
    Net weight                            1.9 kg
    Power supply cord                     2.5 m


  Standard equipment
   Steel case : One piece
   + Bit 2-45 : One piece

  Optional accessories
   + Bit : 2-65, 2-110, 2-150, 2-250, 3-45, 3-65, 3-110
   Socket bit : 7-55, 8-55, 10-55, 3/8-55, 10-70, 13-55, 14-55
   Front cap : 15.5

  Features and benefits
   1.The torque can be easily adjusted in 6-step from outside and the machine can be used for various applications
    including the tex screw, small screw, hexagon bolt and up to the wooden screw.
   2.The noise level in turning under no load has been reduced.
    (Comparison with the 6802BV : When apart from the noise source                    6805BV(78db) 6802BV(85db)
     as shown on the figure, you can hear it with the
    same noise level.)                                                        (Ear)                                About 2 m
   3.The stopper can be adjusted easily only through turning the adjust sleeve.
   4.Since the front cap and the bit can be easily replaced, the tex screw can be easily replaced with the hex screw.
   5.The non-step variable speed switch allows to fasten the small screw and to position the wooden screw easily.

 The standard equipment for the tools shown may differ form country to country.
       Capacity
        1) The adjusting position for the fastening torque switching ring and the fastening torque (reference values)

                [kg-cm]
                 300


                 250                                                                                          (This value is the same
                                     In max. high speed                                                               as for 6802BV.)
                                           (2500RPM)
                200
 Fastening torque
         [kg
