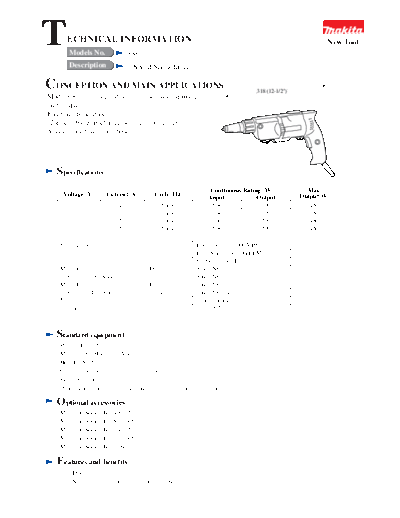

Image preview - the first page of the document
6807-TE


>> Download 6807-TE documenatation <<

Text preview - extract from the document
T        ECHNICAL INFORMATION
         Models No.              6807
                                                                                                     New Tool


         Description             2 Speed Screwdriver

CONCEPTION AND MAIN APPLICATIONS                                             318 (12-1/2")
Model 6807 is designed to fasten screws requiring
hightorque.
It is brief benefit is ;
*2speeds by gear change so that more efficient
driving speed may be chosen.




   Specifications
                                                             Continuous Rating (W)             Max.
     Voltage (V)      Current (A)         Cycle (Hz)                                         Output(W)
                                                             Input           Output
          110              4.6               50/60            500             220               450
          220              2.4               50/60            500             220               450
          230              2.3               50/60            500             220               450
          240              2.2               50/60            500             220               450

    No load speed                                        Low Speed: 0-1000/RPM
                                                         High Speed: 0-2200/RPM
    Driving shank                                        6.35mm (1/4") Hex.
    Max. driving                        Drywall          5mm, NO.10
    capacities (Low Speed)              self Drrilling   8mm, NO.20
    Max. driving                        Drywall          5mm, NO.10
    capacities (High Speed)             self Drrilling   6mm, NO.14
    Net weight                                           2.0kps (4.4 lbs)
    Cord length                                          2.5m (8.2 ft)



   Standard equipment
    Phillips Insert Bit 2-25 ------------- 1 pc.
    Magnetic Bit Holder 6.35-60 ------ 1 pc.
    Hex. Bit 5-75 ------------------------ 1 pc.
    Grip 36 Complete -------------------- 1 pc.
    Plastic Carrying Case ---------------- 1 pc.
    [Note] The standard equipment may differ from country to country.

   Optional accessories
    Magnetic Socket Bit 3/8"-65
    Magnetic Socket Bit 5/16"-65
    Magnetic Socket Bit 1/4"-65
    Magnetic Socket Bit 7/16"-65
    Magnetic Socket Bit 10mm

   Features and benefits
    1.   Double insulated
    2.   See the sheets attached for more information.
     Features    and benefits


                                                           Hook
                           Rigid aluminum gear Housing
Easy removable Locator                                                             Ergonomic design for easily
                                                                                   pushing axis of driving




           Silent Clutch


           Grip 36 Complete
           can be attached at
           left or right side

                                Change Lever
                                2 speeds by gear change

                                        Large Trigger easy to actuate
                                        * Variable speed change switch
                                        * With lever for changing direction



                                                               Very Quiet
                                                             Noise at no load
                                                              Makita 6807          79dB
                                                              Metabo SE6346/2      82dB (=total noise of two 6807's)
                                                                        SE5060/2   86dB (=total noise of five 6807's)
Comparison      chart

                                              MAKITA                          METABO               HILTI
  Model No.                                   6807                 SE6346/2       SE5060/2         TXT1800
 Input (W)                                    500                  400            600              600
 No load speed (rpm)           High speed     0-2200               0-2400         0-2200           0-2250
                               Low speed      0-1000               0-950          0-900            0-1250
 Silent clutch                                Yes                  No             Yes              No
 Noise at no load (dB)                        79                   82             86               82
 Tool length (mm)                             318                  297            349              351
 Net weight (kg)(Actual)                      2.03                 2.05           2.23             2.19
 Max. Fastenig Torque (N.m)                   35 (357kgf.cm)       30 (306kgf.cm) 37 (377kgf.cm)



Wiring Diagram
                                           LINE COIL
                         RED(OR WHITE)                     BLACK
                                RED         2    3
                                (OR WHITE) 1     4         BLACK               FIELD
                                                           WHITE
                                          SWITCH
        P2                     2
