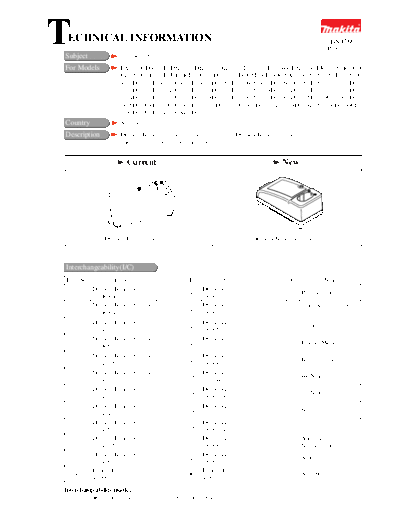

Image preview - the first page of the document
68919-WW-1


>> Download 68919-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Battery Charger
                                                                                                         68919
                                                                                                      (Page 1 of 2)


For Models            DA312D, DA392D, DK1022, DK1025, DK1035, DK1036, DK1044, DK1054, HR160D, JR140D,
                      UB120D, UB121D, UB140D, UC120D, UC170D, UM104D, VR250D, VR251D, 1050D, 1051D,
                      4191D, 4330D, 4331D, 4332D, 4333D, 5093D, 5094D, 5630D, 6095D, 6096D, 6203D, 6204D,
                      6207D, 6213D, 6214D, 6216D, 6217D, 6223D, 6227D, 6228D, 6233D, 6236D, 6237D, 6313D,
                      6314D, 6316D, 6317D, 6327D, 6328D, 6333D, 6336D, 6337D, 6503D, 6705D, 6706D, 6831D,
                      6835D, 6908D, 6909D, 6911HD, 6914D, 6915D, 6916D, 6917D, 6918D, 6940D, 6960D, 6990D,
                      6991D, 6992D, 8413D, 8433D
Country               All countries
Description           DC1413 Battery charger has been changed for DC1414 Battery charger.
                      The charging time remains the same.


                         Current                                                    New




                DC1413 Battery Charger                                    DC1414 Battery Charger



Interchangeability(I/C)
 Item No.        Current part                Q'ty I/C         New part                Q'ty            Note
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes                                 1     Panama, Guam
            193409-4                                   193871-3
            DC1413 Battery Charger                     DC1414 Battery Charger                Saudi Arabia (127V),
                                               1   Yes 193877-1                        1
            193409-4                                                                         Taiwan
            DC1413 Battery Charger                     DC1414 Battery Charger                Canada
                                               1   Yes                                 1
            193410-9                                   193870-5
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes 193870-5                        1     U.S.A., Mexico
            193408-6
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes                                 1     Brazil (110 V)
            193412-5                                   193869-0
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes                                 1 See Note 1 of next page.
            193413-3                                   193864-0
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes                                 1 See Note 2 of next page.
            193411-7                                   193865-8
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes 193868-2                        1     Korea
            193414-1
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes 193867-4                        1     China
            193415-9
            DC1413 Battery Charger                     DC1414 Battery Charger                Australia,
                                               1   Yes                                 1
            193417-5                                   193866-6                              New Zealand
            DC1413 Battery Charger                     DC1414 Battery Charger
                                               1   Yes 193873-9                        1     Argentina
            193418-3
            Battery Box                                Battery Box
    007                                        1                                             All countries
            417882-7                                   418392-7
Interchangeability mark ;
 The arrow      means that the new part is substituted for the current.
                                                                                                             68919
                                                                                                          (Page 2 of 2)


Note
Note 1: Brazil (220V), Chile, Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland, Algeria,
        Canary Islands, Egypt, Reunion, Saudi Arabia (220V), Syria, Turkey, South Africa, Bhutan, Indonesia,
        North Korea, Philippines, Thailand, Vietnam, New Caledonia, Tahiti
Note 2: Dominica, U.K., Kuwait, Hong Kong, Malaysia, Singapore


Implementation
The following models: To be implemented around Aug., 2003.
DA312D, DA392D, DK1022, DK1025, DK1035, DK1036, DK1044, DK1054, HR160D, JR140D, UB120D,
UB121D, UB140D, UC120D, UC170D, UM104D, VR250D, VR251D, 1050D, 1051D, 4191D, 4331D,
4332D, 4333D, 5093D, 5094D, 5630D, 6095D, 6096D, 6203D, 6204D, 6207D, 6213D, 6214D, 6216D,
6217D, 6223D, 6227D, 6228D, 6233D, 6236D, 6237D, 6313D, 6314D, 6316D, 6317D, 6327D, 6328D,
6333D, 6336D, 6337D, 6503D, 6705D, 6706D, 6835D, 6908D, 6911HD, 6914D, 6915D, 6916D, 6917D,
6918D, 6940D, 6960D, 6990D, 6991D, 6992D, 8413D, 8433D

4330D: Discontinued since Apr., 2002.
6831D: Discontinued since Apr., 2000.
6909D: Discontinued since Jan., 2003.
