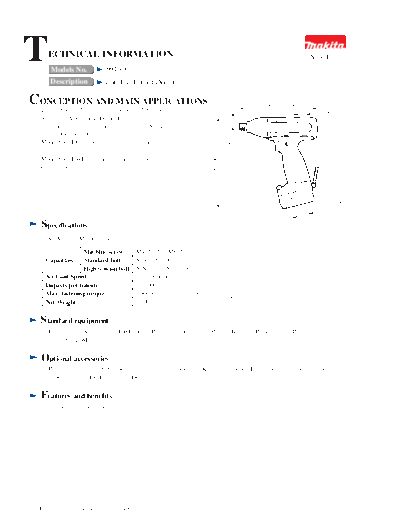

Image preview - the first page of the document
6913D-TE


>> Download 6913D-TE documenatation <<

Text preview - extract from the document
T   ECHNICAL INFORMATION
     Models No.             6913D
                                                                                                                    New Tool


     Description           Cordless Impact Driver

CONCEPTION AND MAIN APPLICATIONS                                                                    194mm(7-5/8")
  Light 1.6 kg (3.5 lbs), short 194 mm (7-5/8"), yet                                                                  56mm(2-3/16")
  powerfu12 V Cordless Impact Driver.
  This tool is handy for fastening lag screws 50 mm (2") to
  120 mm(4-3/4") long.




                                                                                    24.5mm(15/8")
  Model 6913DH is sold with a battery cartridge 1201 but without
  a fast charger.




                                                                        228mm(9")
  Model 6913DWH includes a battery cartridge 1201 and a fast
  Charger DC1201.




                                                                                                                              8")
                                                                                                                         (3-1/
                                                                                                                     79mm

  Specifications
   DC Magnet Motor (12V)

                Machine screw           M4 (5/32") -M8 (5/16")
   Capasities    Standard bolt          M5(3/16") -M12(1/2")
                High tension bolt       M5(3/16") -M10(3/8")
   No Load Speed                        0 -2,200 R/min.
   Impacts per minute                   0 -3,000
   Max. fastening torque                1,000 Kg. cm (72.3 ft. lbs)
   Net Weight                           1.6 Kg (3.5 lbs)


  Standard equipment
    Fast charger DC1201 (6913DWH only), Battery cartridge 1201, Phillips Bit 2-65, Battery cover, Plastic carrying
    case (6913DWH only)


  Optional accessories
    Phillips bit 2-65, 3-65, Bit piece, Various sizes of socket bit, Keyless chuck set, Drill chuck set, Battery cartridge
    1200, 1201, 120IA, Fast charger DC1201


  Features and benefits
      1. See the attached sheet.




 The standard equipment for the tools shown may differ form country to country
                            Sturdy aluminum die-cast
                            hammer case


                                                                           Low noise (approx. 65 dB)


Short center height (24.5 mm;
15/16") allows easy operation
in a corner
                                                                  194 mm
                  24.5 mm




                                                                             Reversing switch
         Pull type quick sleeve system:
         * Makes bits so easy to install
           and remove
         * Will not be moved by pressure                                     Gripping angle makes bit center-
           from the front. This helps pre-                                   ing easier and operation more
           vent the bit from coming off                                      convenient
           unexpectedly when operating in
           a tight place.




                                 Brack-equipped variable speed
                                 trigger switch




                                                                                    Convenient handstrap




                                12 V high capacity battery 1201
