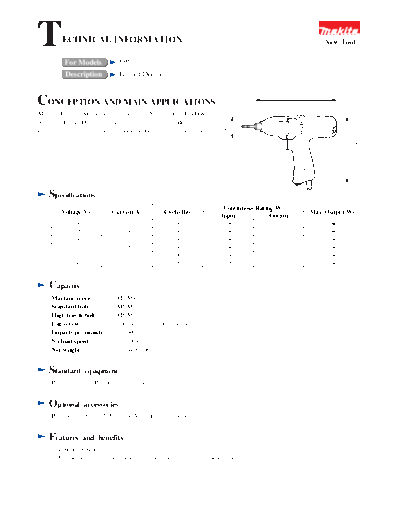

Image preview - the first page of the document
6950-TE


>> Download 6950-TE documenatation <<

Text preview - extract from the document
T        ECHNICAL INFORMATION                                                                                   New Tool

          For Models             6950
           Description           Impact Driver

                                                                                                 240mm

CONCEPTION AND MAIN APPLICATIONS                                                                 (9-1/2")


Model 6905 is an AC version of the existing Model 6903VD/VDW
(Cordless Impact Driver).Lag screw fastening can be made mach            60mm
easier with this variable speed, brake-equipped, light-weight impact    (2-3/8")
driver.




                                                                                                                       (7-1/4")
                                                                                                                       185mm
    Specifications
                                                                            Continuous Rating(W)
         Voltage(V)           Current(A)            Cycle(Hz)                                               Max. Output(W)
                                                                           Input            Output
             100                   3.2                 50/60                300              120                 280
             115                   2.8                 50/60                300              120                 280
             200                   1.6                 50/60                300              120                 280
             220                   1.5                 50/60                300              120                 280
             230                   1.4                 50/60                300              120                 280
             240                   1.3                 50/60                300              120                 280


    Capacity
     Machine screw ............M4-M8(5/32"-5/16")
     Standard bolt ............M5-M12(3/16"-1/2")
     High tensile bolt .........M5-M10(3/16"-3/8")
     Lag screw ..................60mm(2-3/8")-120mm(4-3/4")
     Impacts per minute ......0-3,000
     No load speed ............0-2,200R/min
     Net weight.................. 1.4kg(3.08 lbs)


    Standard       equipment
     Phillips bit 2-65, Plastic carrying case


    Optional       accessories
     Phillips bit 2-65, 3-65, Bit piece, Various sizes of socket bits


    Features       and benefits
     1. Double insulated
     2. For fuether information, see information sheet which we will send you later.
This is additional information on Model 6950 (Impact Driver). Attach this information sheet to MAKITA NEW TOOL
INTRODUCTION NT-34/94.




             Sturdy aluminum die-cast
                                                                                 Powerful motor allows easy
             hammer case
                                                                                 lag screw fastening
             Slim design allows easy
                                                                                 Max.torque:1,000kg.cm
             operation in corner
                                                                                 (72.4 ft.lbs)




                                                                                        Easy carbon brush replacement



                                                                          Well-designed vents prevent
                                                                          cooling air from flowing to-
                                                                          ward operator's face
         Variable speed with brake for
         easy centering and fastening




                                                  Reversing switch
