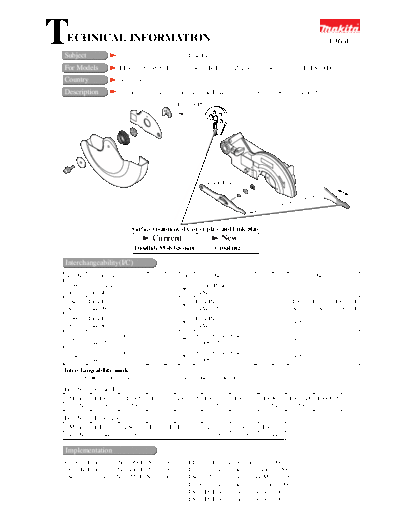

69646-WW-1


>> Download 69646-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Center Plate and Link Plate
                                                                                                            69646


For Models             BLS712, BLS820, LS0711, LS0711B, LS0711Z, LS0713, LS0811, LS711D, LS800D

Country                All countries
Description            Surface treatment of Center plate and Link plate have been changed as described below.
                                                 Center Plate




                                                           Link Plate                                    15mm (9/16")




                               Surface treatment of Center plate and Link plate
                                       Current                  New
                                Disulfide Molybdenum            coating

Interchangeability(I/C)
Item No.        Current part                Q'ty I/C          New part               Q'ty            Note
   See     Center Plate                                Center Plate
                                             1                                        1
  below.   344640-7                                    345410-7
   See     Link Plate                                  Link Plate                           BLS712, LS0711, LS0711B
                                             1                                        1
  below.   344999-2                                    345411-5                             LS0711Z, LS0713, LS711D
   See     Link Plate                                  Link Plate
                                             1                                        1     LS0811
  below.   344786-9                                    345412-3
           Safety Cover Assembly                       Safety Cover Assembly
    003                                      1                                        1     LS0711
           134932-0                                    135061-2
           Safety Cover Assembly                       Safety Cover Assembly
    048                                      1                                        1     LS0811
           134933-8                                    135062-0
Interchangeability mark ;
The arrow      means that the new part can be substituted for the current.
Item No. of Center Plate
  Model      BLS712      BLS820        LS0711 LS0711B LS0711Z        LS0713       LS0811    LS711D    LS800D
Item No.      059         058           020     020     020           020          054        059       058
Item No. of Link Plate
  Model      BLS712      LS0711 LS0711B LS0711Z            LS0713       LS0811    LS711D
Item No.      044         026     026     026               026          026        044

Implementation
BLS820: From serial No. 1990E (Nov., 2003)          BLS712: Discontinued since July, 2003
LS711B: From serial No. 4602E (Nov., 2003)          LS0711: Discontinued since August, 2002
LS0713: From serial No. 1553E (Nov., 2003)          LS0711Z: Discontinued since March, 2003
                                                    LS0811: Discontinued since January, 2003
                                                    LS711D: Discontinued since July, 2003
                                                    LS800D: Discontinued since July, 2003
