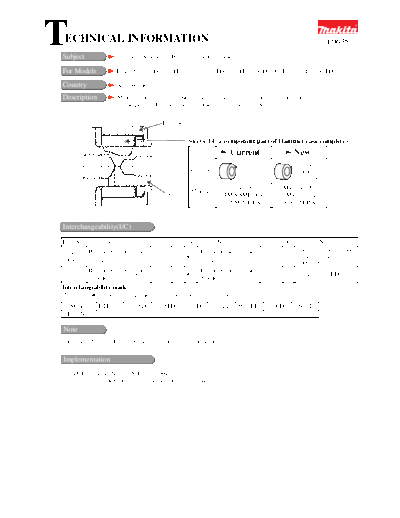

Image preview - the first page of the document
69635-WW-1


>> Download 69635-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject              Change of Sleeve and Hammer Case Complete
                                                                                                               69635


For Models           BTD120, 6916D, 6916FD, 6917D, 6932FD, 6933FD, 6990D, 6991D, 6935FD, 6980FD

Country               All countries

Description           Material and hardness of Sleeve 14 have been changed to improve durability.
                      Consequently Hammer case complete has also been changed.

                                        Hammer Case


                                                  Sleeve 14 (a component part of Hammer case complete)
                                                                  Current                       New
                                                                         Chamfer can            Chamfer can
                                                   Chamfer               be seen.               not be seen
                                                                                                at a glance.
                                                                 Sinter Fe               Machined Fe
                                         Anvil     Material
                                                            (JPMA SMF-5040)            (SCM435 similar)
                                                   Hardness    65 MIN HRA                 81 1.5HRA


Interchangeability(I/C)

Item No.        Current part                Q'ty I/C          New part                   Q'ty            Note
  See      Hammer Case Complete                        Hammer Case Complete                     BTD120, 6916D, 6916FD,
                                             1                                            1 6917D, 6932FD, 6933FD,
 below.   151947-2                                    151947-2                                  6990D, 6991D,
          Hammer Case Complete                        Hammer Case Complete
   016                                       1                                            1 6935FD, 6980FD
          153808-2                                    153808-2
Interchangeability mark ;
 The arrow      means that the new part is substituted for the current.
    Model     BTD120      6916D       6916FD 6917D           6932FD   6933FD      6990D         6991D
  Item No.                                  017                                           022

Note
These parts Nos. of Hammer Case Completes remain the same.

Implementation
6916D: From serial No. 69154E (Jan.,2004)
The remaining models: As soon as the current part runs out
