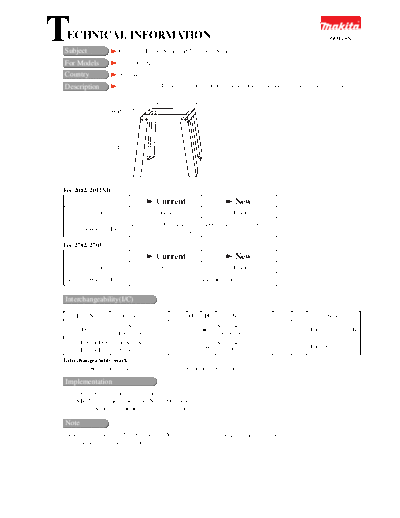

Image preview - the first page of the document
69638-WW-1


>> Download 69638-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Planer Stand and Table Saw Stand
                                                                                                          69638

For Models            2012, 2012NB, 2702, 2703
Country               All countries
Description           Planer stand and Table saw stand of optional accessories have been changed as described below.

                                         Length
                   Width




                    Height




For 2012, 2012NB
                                      Current                        New
          Color                        Green                        Black
                           442mm x 279mm x 460mm 488mm x 319mm x 560mm
Length x Width x Height     (17-3/8" x 11" x 18-1/8") (19-1/4" x 12-1/2" x 22")

For 2702, 2703
                                      Current                        New
          Color                        Silver                       Black
Length x Width x Height                   The sizes remain the same.


Interchangeability(I/C)

     Item No.          Current part               Q'ty I/C         New part                Q'ty         Note
                 Planer Stand                               Stand Set
       F01                                         1                                         1    For 2012, 2012NB
                 STEX122383                                 193902-8
2702: E06 or F08 Table Saw Stand                            Stand Set
                                                   1    Yes                                  1    For 2702, 2703
2703: E07 or F07 192680-7                                   193920-6
Interchangeability mark ;
The arrow      means that the new part can be substituted for the current.

Implementation
2012: As soon as the current parts run out
2012NB: To be implemented from Nov., 2003 production
2702, 2703: As soon as the new parts are available

Note
Custom-built machines 2702X1 and 2703X1 (Table saw with table saw stand) are to be changed
when the new parts are available.
