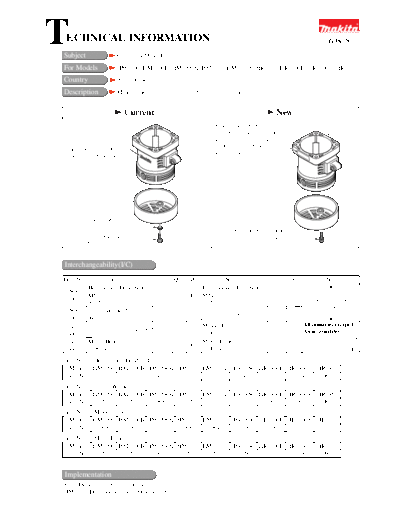

Image preview - the first page of the document
69818-WW-1


>> Download 69818-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject                Change of Motor Housing
                                                                                                               69818


For Models             HM1200, HM1200B, HM1200K, HM1211, HM1211B, HR3850, HR3850B, HR3850K, HR3851
Country                All countries
Description            Motor housing has been changed as illustrated below.


                          Current                                                      New
                                                             Makita labels (819063-3/pc.)
                                                             have been stuck on the concave
                                                             square areas of Motor housing
                                                             (159034-1) with Makita
 Motor housing (159034-1)
                                                             logos molded.
 with convex Makita logo




             Spring Washer 5
               (942101-7)
                                                                    Hex. Socket Head Bolt
           Hex. Socket Head Bolt                                     M5x16 (with washer)
           M5x16      (922222-1)                                          (922221-3)


Interchangeability(I/C)
Item No.       Current part                  Q'ty I/C          New part                       Q'ty            Note
  See   Hex. Socket Head Bolt                          Hex. Socket Head Bolt
                                               2   Yes M5x16                                   2
 below. M5x16                                                                                            Interchangeable
        922222-1                                       922221-3
                                                                                                              as a set
  See   Spring Washer 5
 below. 942101-7                               2
  See                                                  Makita Label                                  All countries except
                                                                                               2     Asian countries
 below.                                                819063-3
                                                                                                             Interchangeable
  See   Motor Housing                          1       Motor Housing
                                                   Yes                                         1                  as a set
 below. 159034-1                                       159034-1
Item No. of Hex. Socket Head Bolt
   Model HM1200 HM1200B HM1200K HM1211 HM1211B HR3850 HR3850B HR3850K HR3851
 Item No.    058        058       069 056 058   084     081     084    087
Item No. of Spring Washer
   Model HM1200 HM1200B HM1200K HM1211 HM1211B HR3850 HR3850B HR3850K HR3851
 Item No.     057       057 068  055     057    083     080     083    086
Item No. of Makita Label
   Model HM1200 HM1200B HM1200K HM1211 HM1211B HR3850 HR3850B HR3850K HR3851
 Item No.    099         095 103 090     094    119     118     121    123
Item No. of Motor Housing
   Model HM1200 HM1200B HM1200K HM1211 HM1211B HR3850 HR3850B HR3850K HR3851
 Item No.    053       053 064   051     053    079     076     079    082


Implementation
From December 2003 production
HM1211: Discontinued since October 2003
