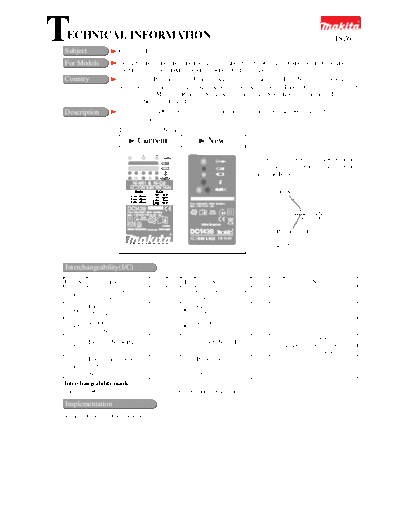

Image preview - the first page of the document
71826-WW-1


>> Download 71826-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Battery charger
                                                                                                                      71826

For Models             DC1439, HR160D, UB121D, UB141D, 6314D, 6503D, 6903VD, 6908D, 6911HD, 6914D,
                       6915D, 6916D, 6916DMT, 6918D, 6990D, 6991D, 6992D
Country                Brazil, Chile, Paraguay, Peru, Uruguay, Austria, France, Germany, Italy, Netherlands, Russia,
                       Spain, Switzerland, Sweden, Bhutan, Algeria, Saudi Arabia, Syria, Turkey, Congo, Canary islands,
                       Egypt, Gabon, Morocco, Reunion, South Africa, Indonesia, North Korea, Philippines, Thailand,
                       Vietnam, New Caledonia, Tahiti,
Description            Battery charger DC1439 combined with the subject cordless tools has been changed
                       as shown below.
                        The difference of Name plate
                                Current                          New

                                                                                      Part number and production date of the new
                                                                                      Battery charger are molded on the reverse
                                                                                      side of the Battery charger itself.

                                                                                          Part number
                                                   Prim.: 220-240V~ 220V 50-60Hz
                                                   Sek. : 7.2V-14.4V 9A
                           DC1439



                                                                                               Production date
                                                                          7.2-14.4V

                                                                                      The reverse side of the new Battery charger


Interchangeability(I/C)
Item No.         Current part              Q'ty I/C                  New part                Q'ty              Note
           Charging Circuit Complete                    Circuit Board Complete
    003                                     1    Yes                                           1
           632902-8                                     638395-7
           Fuse                                         Fuse
    006                                     1                                                  1
           652724-0                                     652777-9
           Varistor                                     Varistor
    005                                     1                                                  1
           647304-5                                     647327-3
                                                                                                    The replacement Name plate
           DC1439 Name Plate                            DC1439 Name Plate
    007                                     1    Yes                                           1    for DC1439 (Part No. 851658-6)
                                                                                                    remains the current design.
         Power Supply Cord                          Power Supply Cord
    002  0.75-2-2.0                        1 Yes 0.75-2-2.0                                    1
          667957-4                                   667841-3
Interchangeability mark ;
The arrow       means that the new part can be substituted for the current.

Implementation
Around October, 2004 production
