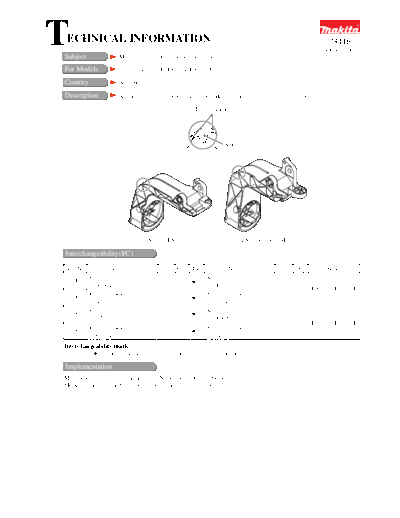

Image preview - the first page of the document
73416-WW-1


>> Download 73416-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Modification of Arm and Arm Complete
                                                                                                           73416
                                                                                                         August, 2005


For Models            LS1013, LS1013F, LS1214, LS1214F

Country               All countries

Description           A hole and two protrusions have been added to the following areas of the subject parts.

                                                    Two protrusions




                                                                A hole




                                LS1013, LS1013F                          LS1214, LS1214F

Interchangeability(I/C)

Item No.         Current part                Q'ty I/C             New part                   Q'ty         Note
           Arm                                           Arm
    090                                        1                                               1
           316839-4                                      317983-0                                   LS1013, LS1013F
           Arm Complete                                  Arm Complete
    090                                        1                                               1
           153838-3                                      154779-6
           Arm                                           Arm
    109                                        1                                               1
           317756-1                                      317984-8
                                                                                                    LS1214, LS1214F
           Arm Complete                                  Arm Complete
    109                                        1                                               1
           153908-8                                      154780-1
Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

Implementation
MJ products: To be implemented from November, 2005 production.
MCA products: Immediately upon completion of preparation.
