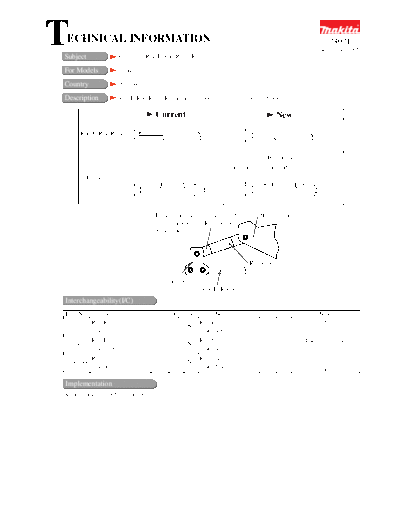

Image preview - the first page of the document
73921-WW-1


>> Download 73921-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject             Change of Rod F, Rod R and Rod Joint
                                                                                                             73921
                                                                                                         September 2005


For Models          2704

Country             All countries

Description         Rod F, Rod R and Rod joint have been changed as illustrated below.

                                    Current                                             New

      Rod F, Rod R 4mm                                               6mm


                                                                                    Handle plate installation side
                                                                  Joint plate installation side
        Rod joint

                    6mm                                    6mm       8mm                                 6mm



                                    Fix the joint plate installation side        Handle plate
                                    (8mm thickness) of Rod joint to
                                    Joint plate.




                                                                            Rod joint

                                        Joint plate
                                                        Rod F, Rod R
Interchangeability(I/C)
Item No.    Current part                  Q'ty I/C         New part                      Q'ty            Note
         Rod R                                       Rod R
  135                                       1     No                                       1
         324557-0                                    324673-8
         Rod F                                       Rod F                                         Interchangeable
  136                                       1     No                                       1
         324558-8                                    324674-6                                           as a set
         Rod Joint                                   Rod Joint
134, 144                                    2     No                                       2
         324560-1                                    324675-4

Implementation
Around October 2005 production.
