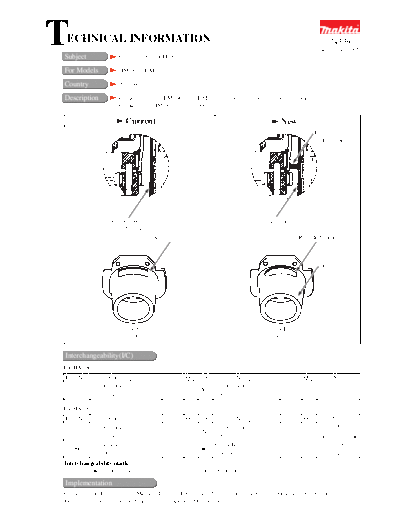

Image preview - the first page of the document
74339-WW-1


>> Download 74339-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Crank Housing, etc.
                                                                                                             74339
                                                                                                         September 2005


For Models            HM1801, HM1810

Country               All countries

Description           Crank housing of HM1801 and HM1810 has been changed as illustrated below.
                      Crank box of HM1810 has also been changed.

                        Current                                                        New
                                                                                                        Rib of Crank
                                                                                                        housing (Added)




                   Crank housing                                                Crank housing
                    (317903-4)                                                   (318027-9)
                                      Sharp corner                                              Rounded corner



                                                                                                         Step




                      Crank Box                                                   Crank Box
                      (317900-0)                                                  (318028-7)


Interchangeability(I/C)
For HM1801
Item No.         Current part                    Q'ty I/C            New part                    Q'ty           Note
           Crank housing                                     Crank housing
    031                                              1   Yes                                       1
           317903-4                                          318027-9

For HM1810
Item No.         Current part                    Q'ty I/C           New part                     Q'ty           Note
           Crank housing                                    Crank housing
    031                                              1   No                                        1
           317903-4                                         318027-9                                     Interchangeable
           Crank Box                                        Crank Box                                         as a set
    066                                              1                                             1
           317900-0                                         318028-7
Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

Implementation
Canada, USA, Brazil(110V), Mexico, Panama, UK(110V): To be implemented around October 2005 production
Remaining countries: Around the middle of August 2005 production
