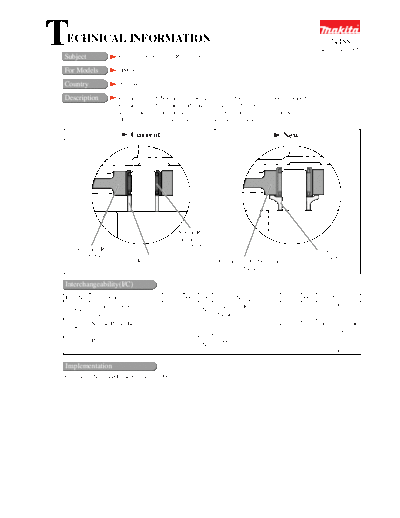

Image preview - the first page of the document
74488-WW-1


>> Download 74488-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject              Change of Connecting Rod and Ring 10
                                                                                                         74488
                                                                                                     September 2005


For Models           HM1810

Country              All countries

Description          Connecting rod, Needle roller bearing 1010 and Ring 10 have been replaced by
                     Connecting rod complete and Spacer as illustrated below.
                     The connecting rod complete consists of connecting rod and needle bearing 1012.
                     However, they can not be supplied respectively for repair.

                         Current                                                     New




                                             Needle Roller
                                             bearing 1010
    Connecting Rod                            (212075-9)
                                                                                                     Spacer
      (324535-0)                                                                                   (331718-5)
                            Ring 10                           Connecting Rod Complete
                          (257267-3)                                (154946-3)

Interchangeability(I/C)
Item No.         Current part                  Q'ty I/C          New part                    Q'ty         Note
           Connecting Rod                                Connecting Rod Complete
    064                                          1    No                                       1
           324535-0                                      154946-3
           Needle Roller Bearing 1010                                                                Interchangeable
    063                                          1                                                        as a set
           212075-9
           Ring 10                                           Spacer
    071                                          1    No                                       1
           257267-3                                          331718-5

Implementation
From serial No. 3448E (September 23, 2005)
