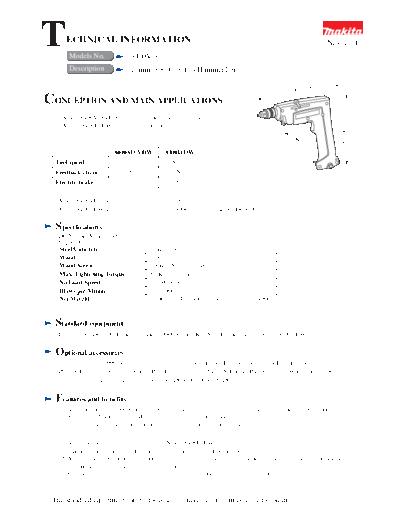

Image preview - the first page of the document
8400VD-TE


>> Download 8400VD-TE documenatation <<

Text preview - extract from the document
T    ECHNICAL INFORMATION
       Models No.               8400VD
                                                                                                                  New Tool


       Description              10mm (3/8")Cordless Hammer Drill

                                                                                                             ")
                                                                                                      (10-1/4
                                                                                            260mm
CONCEPTION AND MAIN APPLICATIONS




                                                                                                                       260mm(10-1/4")
    Model 8400VD/VDW is basically the same as the existing
    Model 8400D/DW except the following.
                                                                                              55
                                                                                                 m
                                                                                             (2- m
                                                                                                3/1
                         8400VD/VDW           8400D/DW                                              6"
                                                                                                       )
  Tool speed                Variable             Single
  Feedback circuit             Yes                No
  Electric brake               Yes                No

   Model 8400VD is sold without a batterycartridge and a fast charger.
   Model 8400VDW includes a battery cartridge 9000 and a fast charger DC9700.


  Specifications
   DC Magnet Motor 9.6V
   Capacities
   Steel/Concrete                      10mm (3/8")
   Wood                                12mm (1/2")
   Wood Screw                          3.8mm (5/32")x20mm (13/16")
   Max. Tightening Torque              50 Kg. cm (3.6ft. lbs)
   No Load Speed                       0 - 900 R/min.
   Blows per Minute                    0 -10,000
   Net Weight                          1.7 Kg (3.7 lbs)including battery cartridge 9000



  Standard equipment
   Fast Charger DC9700, Battery Cartridge 9000, Chuck Key S10, Plastic Carrying Case (8400VDW only)


  Optional accessories
   Battery Cartridge 9000, Various size of Tungsten-carbide Tipped Bits, Various size of Drill Bits, Various size of
   Phillips Bits, Various size of Slotted Bits, Foam Polishing Pad 125, Rubber Pad Assembly, Wool Bonnet 100,
   Various size of Abrasive Discs, Fast Charger DC9700, DC9015, DC9112


  Features and benefits
    1. Variable speed (0 - 900 R/min.) allows easy starting of bit and selecting of speed suitable for your work.
    2. Built-in feedback circuit produces high-power even at low speed.
    3. Electric brake quickly stops chuck for perfect control when driving screws.

       The following features are the same as Model 8400D/DW.
    4. Simply flick a switch for "Rotation with hammering" or "Rotation only".
    5. You can perform continuous work with less fatigue because the tool reaction is relatively small due to special
       hammering system using a compression spring.
    6. Can be used as a screwdriver as well because it is equipped with a reversing switch.



 The standard equipment for the tools shown may differ form country to country
