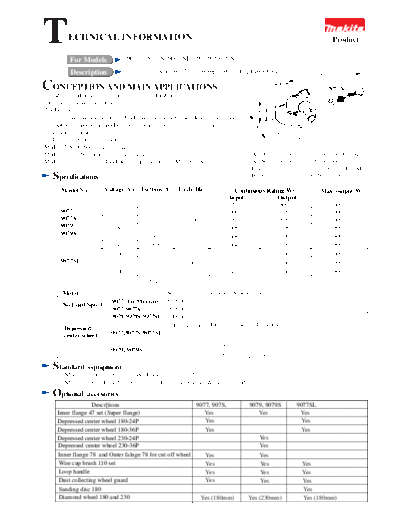

Image preview - the first page of the document
9077-TE


>> Download 9077-TE documenatation <<

Text preview - extract from the document
T        ECHNICAL INFORMATION

                                   9077, 9077S, 9077SL / 9079 ,9079S
                                                                                                                    Product

          For Models
          Description                        180mm (7'') / 230mm (9'') Disc Grinders                     484mm(19")

CONCEPTION AND MAIN APPLICATIONS                                                               B
The above models are the products with high durability
for stone work in professional use.
The benefits are
 1. Coil spring on gear sectio for deadening the shock by accidental wheel lock.
 2. Enable to change the handle's angle without any tools for employing as           A
    a cutting machine.
 3. Trouble free new soft starter.                                                                 76mm (3")
Mod.9077S, 9079S : with soft start feature                                                         146mm (5-3/4")
Mod.9077, 9079 : without soft start feature                                         A:200mm(7-7/8") for 9077, 9077S, 9077SL
Mod.9077SL : Low speed and high torque version of Mod.9077S                         A:250mm(9-7/8") for 9079, 9079S,
                                                                                    B:43mm(1-11/16") for 9077, 9077S, 9077SL
   Specifications                                                                   B:68mm(2-11/16") for 9079, 9079S,

       Model No.        Voltage (V)     Current(A)     Cycle(Hz)              Continuous Rating(W)           Max. output(W)
                                                                            Input            Output
                            110             15                             1650               800                   2600
      9077                  *110            19                             2000             1100                    2600
      9077S                 120             15              50/60          1650               800                   2600
      9079                  220             9.6                            2000              1100                   3300
      9079S                                 9.2                                              1100                   3300
                            230                                            2000
                            240             8.8                            2000              1100                   3300
                             100            15                             1430               600                   2600
      9077SL                120             15              50/60          1650               800                   2600
                             200            7.5                            1430               600                   2600
                            *110 : Great Britain
       Motor                                   Series commutator motor (S94-50 load)
       No Load Speed       9077 (for Mexico) 8100 R/min.
                           9077, 9077S         7600 R/min.
                           9079, 9079S, 9077SL 6000 R/min.
        Depressed                              Outer diameter Inner diameter Thickness
        center wheel       9077,9077S,9077SL 180 mm              22.23 mm        6 mm
                                                 7"               7/8"           1/4"
                                                230 mm           22.23 mm        6 mm
                           9079, 9079S
                                                 9"               7/8"           1/4"

   Standard       equipment
    For Mod.9077, 907S, 9079, 9079S : Lock nut wrench35
    For Mod.9077SL : Lock Nut Wrench 35, Depressed Center Wheel 180-36P
   Optional      accesories
                   Descr[tions                             9077, 907S,             9079, 9079S      9077SL
     Inner flange 47 set (Super flange)                       Yes                     Yes            Yes
     Depressed center wheel 180-24P                           Yes                                    Yes
     Depressed center wheel 180-36P                           Yes                                     Yes
     Depressed center wheel 230-24P                                                   Yes
     Depressed center wheel 230-36P                                                   Yes
     Inner flange 78 and Outer falnge 78 for cut off wheel    Yes                        Yes
      Wire cup brush 110 set                                  Yes                        Yes          Yes
      Loop handle                                             Yes                        Yes          Yes
      Dust collecting wheel guard                             Yes                        Yes          Yes
      Sanding disc 180                                                                                Yes
      Diamond wheel 180 and 230                             Yes (180mm)            Yes (230mm)        Yes (180mm)
      ** Coil spring joint
        for deadening shock by accidental wheel lock
        during the work, and for prevention of
        over tightening of lock nut by starting shock
        or by operation under heavy load.
                                                                  Long life motor
                                                                 Effective thickness of segment in commutator.
                                                                 Dust proof armature by coating varnish in zigzag line.
                                                                 Field protected with tape from the dust.

High sealed gear housing                   Soft rubber grip
equipped with O rings on
                                           slip free and
bearing box and spindle lock.
                                           comfortable to grip




                                                                                         Handle can be rotated to either 90
