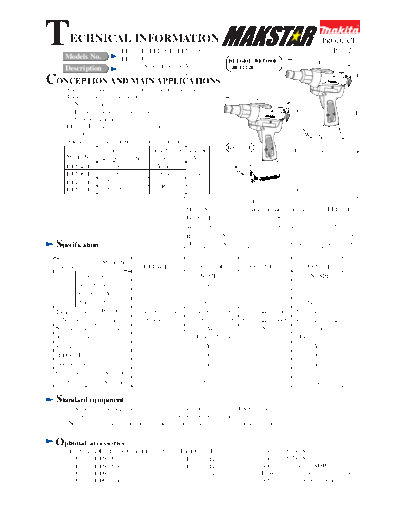

Image preview - the first page of the document

>> Download BFT040F-TE documenatation <<

Text preview - extract from the document
    Models No.
                            BFT040F, BFT080F, BFT122F,
                            BFT123F                                       BFT040F, BFT080F,
                                                                                                                  P 1 / 21
     Description            Cordless Screwdrivers 9.6V                     BFT122F
     Specially developed for fastening works in assembling line.
     Their common feature and benefits are as follows.                               L
      * New charging system
      * Higher accuracy in fastening torque                                                                                     H
      * Superior handling
     BHT123F (12V) is applicable to tightening at
     high turning angle.                                                                                  W
     And their fastening torque range is as listed below.
               Torque range in    Identification Voltage                  BFT123F                    H
     Model No. hard joint : (N.m)     plate       (V)
     BFT040F      1-4                Yellow
     BFT080F      3-8                 Blue                                  W
     BFT122F      5 - 12
     BFT123F      5 - 12                            12
                                                                                    Dimensions : mm ( " )
                                                      Model No.                  BFT040F, BFT080F, BFT122F            BFT123F
                                                      Length ( L )                         200 (7-7/8)
                                                      Width ( W )                           65 (2-9/16)            71 (2-13/16)
                                                      Height w/2.0Ah battery               251 (9-7/8)             260 (10-1/4)
 Specification                                        (H)     w/3.3Ah battery              274 (10-3/4)            283 (11-1/8)

                    Model No.
 Specifications                    BFT040F                  BFT080F             BFT122F                   BFT123F
          Type of cell                                      Ni-MH                                          Ni-MH
 Battery Voltage : V                                          9.6                                            12
          Capacity : Ah                                      2.0 / 3.3                                     2.0 / 3.3
          Energy : Wh                                       19.2 / 31.7                                   24.0 / 39.6
 Torque range      Hard joint 1 - 4 (8.85 - 35.4)      3 - 8 (26.6 - 70.8)   5 - 12 (44.3 - 106)     5 - 12 (44.3 - 106)
  : N.m (in.lbs)   Soft joint 1 - 3.5 (8.85 - 31.0)    3 - 6.5 (26.6 - 57.5) 5 - 10 (44.3 - 88.5)    5 - 12 (44.3 - 106)
 No load speed : rpm.= min-1         950                        540                 320                       390
 Driving shank : mm ( " )                                  Hex 6.35 (1/4)                             Hex 6.35 (1/4)
 Soft start                                                    Yes                                           Yes
 LED Job Light                                                 Yes                                           Yes
 Externally accessible brush                                  Yes                                             Yes
 Net weight w/ 2.0Ah battery                               1.3 (2.9)                                      1.6 (3.5)
    : kg(lbs) w/ 3.3Ah battery                             1.5 (3.3)                                      1.8 (4.0)

 Standard equipment
      * Adjust grip for torque adjusting ......... 1 pc. (exclusively for Italy, USA, Canada)
      * Protector ............................................. 1 pc. (exclusively for Germany)
    < Note > The standard equipment for the tool shown may differ from country to country.

 Optional     accessories
      For BFT040F, BFT080F and BFT122F              For BFT123F                      * Charger DC14SA
      * Battery BH9020                              * Battery BH1220                 * Charger DC24SA
      * Battery BH9020A                             * Battery BH1233                 * Auto refresh adapter ADP03
      * Battery BH9033                              * Grip base set                  * Protectors ( red, blue, yellow and clear )
      * Battery BH9033A                             * Grip 37                        * Adjust grip for torque adjusting
Features     and benefits
                                                                     Lighter than Competitor A 12V series models
                                                                                                                 P 2 / 21
                                                                     by approx. 90g.
                          *Higher Torque Accuracy
                                                                              Light Tool Weight
      Adjust grip (optional accessory)                               Lighter than BOSCH 12V series models
                                                                     by approx. 90g.
      Without this adjust grip,
                                                                     The measured weight of BFT123F : 1.64 Kg
       it is impossible to adjust the
                                                                     The measured weight of Model A-J : 1.73 Kg
      fastening torque for these models.
                                                                     See the comparison in page 6

                                  9                        1
  1                                                                                                   9

                                                                 2                                           8
                                                  8              3
                                              7                                             5     7
            3                                                    BFT123F
           BFT040F                    4
           BFT080F                                                                              6A
                                                                                    Protector (optional accessory)
       Light Tool Weight                                                          By mounting this protector to these
                                                                                  4 models, the materials
      Lighter than 6796FD series models by approx. 70g.
                                                                                  (such as automobile's body on the
      See the comparison in page 6.
                                                                                  assembling line) can be protected
                                                                                  from the scratch, etc.

                                                                                 For Model BFT123F
                                                                     Side grip for the fastening at high turning angle

       1. Bit sleeve, coated with rubber for protection                  7. D28 type motor with the following features.
          the materials from scratch, etc.                                  * Externally accessible brushes.
       2. LED Job Light                                                     * Replaceable armature
       3. ON-OFF switch with the following features.                        * Uses compact and light, yet
           * Delayed re-starter for                                           powerful rare earth magnet
             reducing deviation by                                       8. Indication lamp and beeper inform
             unintentional over tightening.                                 operator of the following matters
           * Starts 0.2 sec. after pulling                                    * Sufficient fastening : Green on
             switch trigger.                                                  * Insufficient fastening : Red on
           * Soft start for suppressing the                                                         and beeping
             starting shock.                                                  * Warning that remaining battery
       4. Anti-slip dimpled grip                                                power is little. : Red on and beeping
       5. Conveniently located push button type reverse switch                * Too little battery power to rotate
                                                                                the machine. : Motor stops with
       6. Operated with the batteries of                                                         Red on and beeping
          new charging system.                                              See the further information in the
                                                                            page 3.
       6A. High turning angle in soft joint,
           with Battery BH1233 12V, 3.3Ah of                             9. Identification plate
           new charging system.                                             See the further information in the
                                                                            page 4.
Features     and benefits                                                                                          P 3 / 21

 Indication lamp, buzzer and auto stop system
 In case of no trouble on the result of work and on the machine itself, the lamp and beeper inform
 of the following matters.

   Lamp              Beeper         Auto stop          What the lamp, beeper and auto stop system inform of.
  Lights up in the A series of                           Under testing the function of indication
  order of green, short beeps                            lamp and beeper, when installing battery.
  red and white.
                                                        Finish of single fastening process with reaching
                                                        the pre-set fastening torque.
  Lights up                                             At this time, clutch works and delayed restarter
                    No beep            ON
  in green.                                             keeps the motor still for one second after finishing
                                                        sufficient fastening process, to avoid the unintentional
                                                        over-tightening which will occur by mis-operation
                                                        of switch trigger.

 In case of trouble on the result of work, or on the machine itself, the lamp and buzzer inform of the following matters.

                                                    What the lamp, beeper and
   Lamp            Beeper         Auto stop         auto stop system inform of.               Action to be taken
                                                     Insufficiently finished single     Try again to fasten the screw
                                                     fastening process, without         or bolt.
  Lights up        A long
                                                     reaching the pre-set fastening     It is important to pull the switch
  in red.          beep
                                                     torque.                            trigger on, until clutch works.

                                                     Remaining battery                Motor rotates on, however, it is
                  A series                           power is little.                 recommended to replace with
  Flickers in red of long                                                             the fully charged battery in the
  slowly.         beeps                                                               appropriate time.

                                                     Impossible to fasten screws        Immediately replace the
                   A series
                                                     or bolts with the pre-set          old battery with the fully
  Lights up        of long           ON
                                                     fastening torque any more.         charged battery.
  in red.          beeps

  Lights up in     A series                          Warning of abnormal drop of        Motor does not rotate in spite of
  red and green    of long                           battery voltage for some           pulling switch trigger.
  alternately.     beeps                             reason.                            The warning by lamp and beeper
                                                                                        stops with removing battery.

                   A series                          Warning of over heat on            Remove the battery immediately
  Flickers                                           controller.                        and cool the machine down.
                   of long           ON
  in red

  Lights up in     A series                          The battery has been installed      Release the switch trigger.
  red and green    of long                           with keeping switch trigger
  alternately.     beeps             ON              pulled.
Features     and benefits                                                                                         P 4 / 21

                        Identification Plate for BFT040F Series Models
 BFT040F Series Models (BFT040F, BFT080F, BFT122F and BFT123F) are equipped with
 Identification Plates for easy control in your factory.
 Even if the name plates would fall off the machines, or even if it is too difficult to read the indications from the worn
 name plates, BFT080F Series Models can be easily identified from the identification plates.

                                                                   *****               Identification number with 5 digits;
 Identification plate
                                                                                       With this 5 digits, it can be
                                                                  5 - 12N.m            identified, (for example) in which
                                                                                       manufacturing section the relative
                                                                                       machine is employed.
                                                                                       The identification number is put
                                                                                       by MAKITA, independent of the
                                                Torque range;                          serial numbers.
                                                Model No. can be identified with
                                                this indication as mentioned below.

            *****                                    *****                                      *****
            1 - 4N.m                                 3 - 8N.m                                  5 - 12N.m

            BFT040F                                 BFT080F                                   BFT122F
                         Yellow plate                            Blue plate                   BFT123F       Red plate

                  How to control the BFT040F series models with the identification plate

 BFL080F series models are employed in some factory, for example , as listed below.
                        Employed                Indications on the identification plate                       Employed
 Manufacturing          model           Torque range                  Identification No.                      quantity
 section A              BFT040F          1 - 4N.m         00001 - 00250                                        250
                        BFT080F          3 - 8N.m         00123 - 00275                                        153

                        Employed                Indications on the identification plate                       Employed
 Manufacturing          model           Torque range                  Identification No.                      quantity
 section B              BFT040F          1 - 4N.m         00251 - 00300                                           50
                        BFT122F          5 - 12N.m        10300 - 10449, 00899, 15689,                           152

                        Employed                Indications on the identification plate                       Employed
 Manufacturing          model           Torque range                  Identification No.                      quantity
 section C              BFT123F          5 - 12N.m        00030 - 00119, 00830 - 00836,                           97
                        BFT080F          3 - 8N.m         50025 - 50099, 00830 - 00836,        15689,             83

       You can identify the model No. and to which manufacturing section the relative machine belongs, from the
       indications on the plates.

            00237                                    00899                                      00117
            1 - 4N.m                                 5 - 12N.m                                 5 - 12N.m

        BFT040F employed in                    BFL122F employed in                     BFL123F employed in
        manufacturing section A                manufacturing section B                 manufacturing section C

            00129                                    00296                                      50057
            3 - 8N.m                                 1 - 4N.m                                  3 - 8N.m

        BFL080F employed in                    BFT040F employed in                     BFT080F employed in
        manufacturing section A                manufacturing section B                 manufacturing section C
Features   and benefits                                                                                                                                                     P 5 / 21

Limit Capacity Table

                                                                                                [BFT040F]                 with 9.6V 2.0 Ah battery
               Turning angle (
