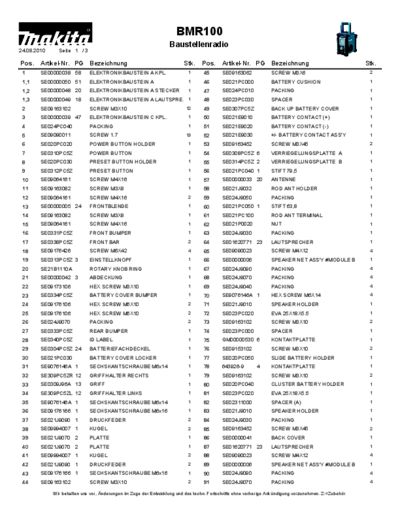

Image preview - the first page of the document
>> Download Makita_BMR100_Baustellenradio_Explosionszeichnung_2010_SM documenatation <<
Text preview - extract from the document
BMR100
Baustellenradio
24.08.2010 Seite 1 / 3
Pos. Artikel-Nr. PG Bezeichnung Stk. Pos. Artikel-Nr. PG Bezeichnung Stk.
1 SE00000038 58 ELEKTRONIKBAUSTEIN A KPL. 1 45 SE09163062 SCREW M3X6 2
1,1 SE00000050 51 ELEKTRONIKBAUSTEIN A 1 46 SE021PC000 BATTERY CUSHION 1
1,2 SE00000048 20 ELEKTRONIKBAUSTEIN A STECKER 1 47 SE024PC010 PACKING 1
1,3 SE00000049 18 ELEKTRONIKBAUSTEIN A LAUTSPRE. 1 48 SE023PC030 SPACER 1
2 SE09163102 SCREW M3X10 12 49 SE0307PC5Z BACK UP BATTERY COVER 1
3 SE00000039 47 ELEKTRONIKBAUSTEIN C KPL. 1 50 SE021E9010 BATTERY CONTACT (+) 1
4 SE024PC040 PACKING 1 51 SE021E9020 BATTERY CONTACT (-) 1
5 SE09090011 SCREW 1.7 13 52 SE021E9030 +/- BATTERY CONTACT ASS'Y 1
6 SE020PC020 POWER BUTTON HOLDER 1 53 SE09163452 SCREW M3X45 2
7 SE0310PC5Z POWER BUTTON 1 54 SE0308PC5Z 6 VERRIEGELUNGSPLATTE A 1
8 SE020PC030 PRESET BUTTON HOLDER 1 55 SE0314PC5Z 2 VERRIEGELUNGSPLATTE B 1
9 SE0312PC5Z PRESET BUTTON 1 56 SE021PC040 1 STIFT 79,5 1
10 SE09064161 SCREW M4X16 1 57 SE00000033 20 ANTENNE 1
11 SE09163082 SCREW M3X8 1 58 SE021J9032 ROD ANT HOLDER 1
12 SE09064161 SCREW M4X16 2 59 SE024J9050 PACKING 1
13 SE00000005 24 FRONTBLENDE 1 60 SE021PC050 1 STIFT 63,8 1
14 SE09163082 SCREW M3X8 1 61 SE021PC100 ROD ANT TERMINAL 1
15 SE09064161 SCREW M4X16 1 62 SE021P0020 NUT 1
16 SE0331PC5Z FRONT BUMPER 1 63 SE024J9030 PACKING 1
17 SE0338PC5Z FRONT BAR 2 64 SE01620771 23 LAUTSPRECHER 1
18 SE09176426 SCREW M6X42 4 65 SE09090023 SCREW M4X12 4
19 SE0313PC5Z 3 EINSTELLKNOPF 1 66 SE00000006 SPEAKER NET ASS'Y #MODULE B 1
20 SE21B1110A ROTARY KNOB RING 1 67 SE024J9090 PACKING 4
21 SE00000042 3 ABDECKUNG 1 68 SE024J9070 PACKING 4
22 SE09173106 HEX SCREW M3X10 1 69 SE024J9040 PACKING 4
23 SE0334PC5Z BATTERY COVER BUMPER 1 70 SE9076146A 1 HEX SCREW M6X14 4
24 SE09176106 HEX SCREW M6X10 2 71 SE021J9010 SPEAKER HOLDER 1
25 SE09176106 HEX SCREW M6X10 2 72 SE023PC020 EVA 25X18X5.5 1
26 SE024J9070 PACKING 2 73 SE09163102 SCREW M3X10 2
27 SE0333PC5Z REAR BUMPER 1 74 SE023PC000 SPACER 1
28 SE0340PC5Z ID LABEL 1 75 GM00000530 6 KONTAKTPLATTE 1
29 SE0304PC5Z 24 BATTERIEFACHDECKEL 1 76 SE09153102 SCREW M3X10 2
30 SE021PC030 BATTERY COVER LOCKER 1 77 SE020PC050 SLIDE BATTERY HOLDER 1
31 SE9076146A 1 SECHSKANTSCHRAUBE M6x14 1 78 643926-9 4 KONTAKTPLATTE 1
32 SE309PC5ZR 12 GRIFFHALTER RECHTS 1 79 SE09163102 SCREW M3X10 2
33 SE0309J96A 13 GRIFF 1 80 SE020PC040 CLUSTER BATTERY HOLDER 1
34 SE309PC5ZL 12 GRIFFHALTER LINKS 1 81 SE023PC020 EVA 25X18X5.5 1
35 SE9076146A 1 SECHSKANTSCHRAUBE M6x14 1 82 SE02311000 SPACER (A) 1
36 SE09176166 1 SECHSKANTSCHRAUBE M6x16 1 83 SE021J9010 SPEAKER HOLDER 1
37 SE021J9090 1 DRUCKFEDER 2 84 SE024J9030 PACKING 1
38 SE09994007 1 KUGEL 2 85 SE09163452 SCREW M3X45 2
39 SE021J9070 2 PLATTE 1 86 SE00000041 BACK COVER 1
40 SE021J9070 2 PLATTE 1 87 SE01620771 23 LAUTSPRECHER 1
41 SE09994007 1 KUGEL 2 88 SE09090023 SCREW M4X12 4
42 SE021J9090 1 DRUCKFEDER 2 89 SE00000006 SPEAKER NET ASS'Y #MODULE B 1
43 SE09176166 1 SECHSKANTSCHRAUBE M6x16 1 90 SE024J9090 PACKING 4
44 SE09163102 SCREW M3X10 2 91 SE024J9070 PACKING 4
