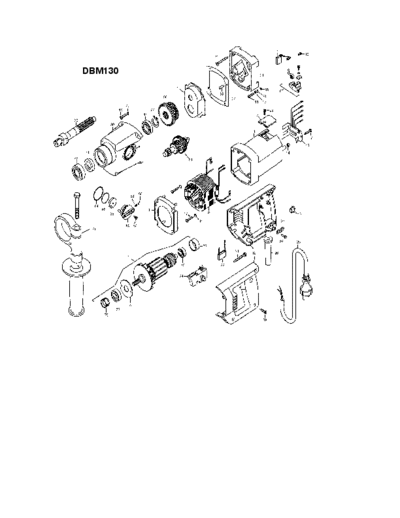

Image preview - the first page of the document
DBM130-TE-AT


>> Download DBM130-TE-AT documenatation <<

Text preview - extract from the document
DBM130
                                                        DBM130 DBM130 Parts List



 Pos.            Item No.             Description                   Remarks
   1    EE   7332L100             ARMATURE ASS'Y
   2    EE   73320150                FIELD ASS`Y
   3    EE   80900159              MOTOR HOUSING
   4    EE   73320140               BAFFLE PLATE
   5    EE   73320215           BRUSH HOLDER COVER
   6    EE   80201199            BRUSH HOLDER CPL.
   7    EE   80700019                   BRUSH
   8
   9
  10    EE   80201251           TAPPING SCREW 2,9x9,5
  11    EE   80201131           OVAL HEAD SCREW M4x17
  12    EE   73320260/1        HANDLE COVER CPL.
  13    EE   80200752                SELF LOCK 4,3
  14    EE   80201295                PLASTIC NUT
  15    EE   73313280                CONTROLLER
  16    EE   83000053                   PLUG
  17    EE   80201273            TAPPING SCREW 4,2x25
  18
  19    EE 80201362                 STOP RING S6
  20
  21    EE 80201267           PAN HEAD SCREW 4,8x45
  22    EE 73320305                  CONDENSER
  23    EE 80201371                  WASHER 4,3
  24    EE 80600116                    SWITCH
  25    P-26185                  POWER SUPPRY CORD
  26    EE   71323255               CORD GUARD
  27    EE   71540330               STRAIN RELIEF
  28    EE   80201270         PAN HEAD SCREW 4,2x13
  29    EE   80201272           BLECHSCHRAUBE 4,2x22
  30
  31    EE   7332S610           CRANK HOUSING COVER
  32    EE   73320620                   GASKET
  33    EE   83000019                RING 3,68x1,78
  34    EE   73320625               GREASE COVER
  35
  36
  37    EE 80201275         COUNTERSUNK HEAD SCREW 4,5x50
  38    EE 80200580                   PIN 5x16
  39    EE 7332S400          GEAR HOUSING COMPLETE
  40
  41    EE 83000023                  SEAL 20x35x7
  42
  43
  44    211306-3                     BALL BEARING
  45    211301-3                     BALL BEARING
  46    EE 80201204             OVAL HEAD SCREW M5x20
  47    EE 80201302              SPRING WASHER 5
  48
  49
  50
  51    EE 73320493               TORQUE LIM.CPL.
  52
  53
  54
  55
  56
  57
  58    EE 73320440                     GEAR
  59    EE 80201319               RETAINING RING 19
  60    EE 73320420                    SPINDLE

  62    EE   80200698         COMPRESSION SPRING
  63    EE   80410080              STEEL BALL 3.5
  64    EE   83000022                RING 36x1,5
  65    EE   83000017                 RING 28x1
  66    EE   73320542               COVER PLATE
  67    EE   80201149               SCREW M3x12
  68    EE   73320541                 SWITCH
  69
  70
  71    EE 7332L695                GRIP COMPLETE
  72    EE 73320315              SUPPORTING WASHER
