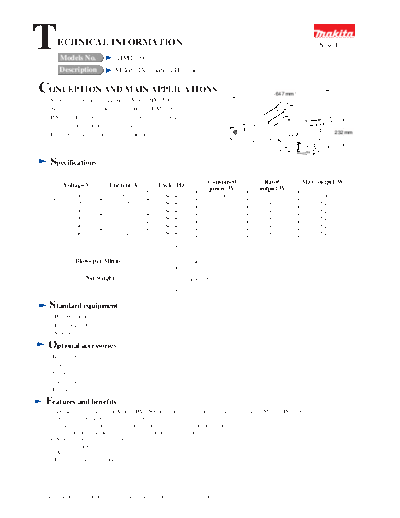

Image preview - the first page of the document
HM1500-TE


>> Download HM1500-TE documenatation <<

Text preview - extract from the document
T   ECHNICAL INFORMATION
      Models No.              HM1500
                                                                                                     New Tool


     Description              Makita Demolition Hammer

CONCEPTION AND MAIN APPLICATIONS                                                       647 mm
  Super duty Demoition Hammer Model HM1500 is
  more powerful than the existing models HM1300 and
  HM1301.This tool is excellent for percusing, cutting
  away,digging,tamping,scaling,etc.
  Equipped with antivibration handles to reduce                                                            232 mm

  operator fatigue.
                                                                                    118 mm

  Specifications
                                                                Consumed           Rated        Max. output(W)
       Voltage(V)        Current(A)        Cycle (Hz)
                                                                power(W)          output(W)
           100                 15.0           50/60               1430               710            1100
           115                 13.5           50/60               1470               820            1540
           200                  7.7           50/60               1470               820            1540
           220                  7.0           50/60               1470               820            1540
           230                  6.7           50/60               1470               820            1540
           240                  6.4           50/60               1470               820            1540



            Blows per Minite                             1300

                 Net weight                        17.0kg(37.5lbs)



  Standard equipment
   Hex Wrenches 5,6,10
   Bull point 30-410
   Steel Carring Case

 Optional accessories
   Bull point
   Cold chisel
   Scaling chisel
   Clay Spade,
   Rammer...etc.
 Features and benefits
  1. Demolotion capacity of Model HM1500 is about 30% higher than that of existing Model HM1300.
  2. Antivibration handles to reduce operator fatigue.
  3. Cushion ring(rubber) between motor housing and brush holder lessens
    vibration of brush holder and prevents brakage of ring terminal.
  4. Side handle swings full 360
  5. Greese packed
  6. Automatic cut off brushes
  7.Double insulated for operator safety




 The standard equipment for the tools shown may differ form country to country.
Comparison
1). Specification comparing


           Model No.               HM1500                                     HM1300
 Voltage                            100V                                        100V
 Current                             15.0A                                      13.0A
 Continuous rating input           1430W                                        1240W
 Blows per minute                  1300/min                                    1200/min
 Overall length                    647mm                                        687mm
 Net weight                          17.0kg(37.5lbs)                                16.5kg(35.3lbs)
 Striking energy                    40.3J                                           36.7J

2). Performance comparing
  Chipped concrete weight by chipping concrete floor downward for 3 minutes

                                                       Chipped concrete weight kg

   HM1500                                       15.8(34.8LBS)


   HM1300                                       11.9(26.2LBS)
