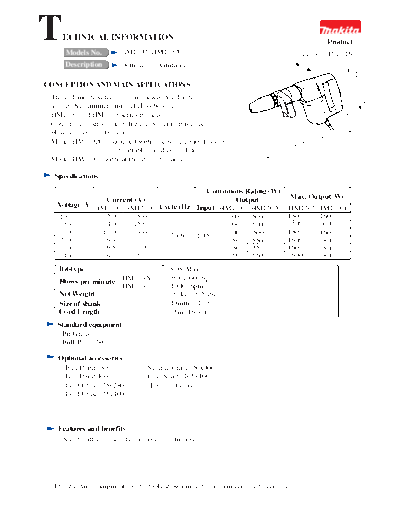

Image preview - the first page of the document
HM1202C-TE


>> Download HM1202C-TE documenatation <<

Text preview - extract from the document
T   ECHNICAL INFORMATION
     Models No.         HM1202, HM1202C                                       112mm(4-3/8")
                                                                                                  Product
                                                                                                   P 1 / 16
     Description        Demolition Hammers




                                                                                                          258m
CONCEPTION AND MAIN APPLICATIONS




                                                                                                              m(10
 These demolition hammers are newly developped




                                                                                                                  -1/8"
 as a 10 Kg hammer. (middel class between




                                                                                                                        )
 HM1201 and HM1303 series models.)
 Considerable strong demolishing power in this class,
 However, softened reaction.                                                                   )
 Model HM1202C : equipped with electronic control system                               (22-3/4"
                                                                               57  8mm
                    and variable speed control dial.
 Model HM1202 : without the above features.

  Specifications

                                            Continuous Rating (W)
                 Current (A)                        Output                     Max. Output(W)
   Voltage (V) HM1202 HM1202C Cycle (Hz) Input HM1202 HM1202C                  HM1202        HM1202C
   100          15.0     15.0                     700   500                    1500          1600
    110         14.0     15.0                     700   500                    1500          1600
    120         13.0     13.0                     700    500                   1500          1600
                                 50/60 1,450
    220          6.8      7.3                     750   550                    1600          1800
    230          6.5      7.0                     750    550                   1600          1800
    240          6.3      6.7                     750    550                   1600          1800
   Bit-type                            SDS-Max
   Blows per minute HM1202C            950-1900 (bpm)
                    HM1202              1900 (bpm)
   Net Weight                           9.3kg (20.5 lbs)
   Size of shank                       18mm (11/16")
   Cord Length                           5m (16.4 ft)
   Standard equipment
    Bit Grease
    Bull-Point 280

   Optional accessories
    Bull Point 280               Scaling Chisel 50x400
    Bull Point 400               Clay Spade 105x400
    Cold Chisel 25x280           Hammer Grease
    Cold Chisel 25x400



   Features and benefits
    See the attached sheets for more information.




  The standard equipment for the tools shown may differ form country to country.
HM1202C                                                                                     P 2 / 16
                              Cylindric Barrel for comfortable gripping


Rigid aluminum side handle base




                                                                              Big and durable cord guard
                                                                              protecting the cord from the
                                                                              fatigue by frequent inflection


                                                                    Easy to hold the machine
      High capacity being superior to                               due to light weight
                                                                    Makita Mod.HM1202C :        9.3 Kg
      Competitor A, Model A by 20 %.
                                                                    Competitor A, Model A      : 10.5 Kg
      Competitor B, Model B by 10 %.
                                                                    Competitor B, Model B      : 9.9 Kg
      Competitor C, Model C by 50%.
                                                                    Competitor C, Model C      : 9.7 Kg
      You can learn the above superiority easily
      by your trial operation.

 Other features
 1.Easy and comfortable long time operation with ON-OFF slide switch which is not required to be pressed
   by operator during the work.
 2.D-form side grip swivels 360
