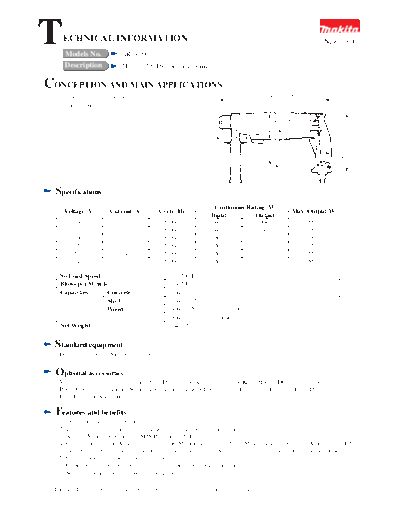

Image preview - the first page of the document
HR2400-TE


>> Download HR2400-TE documenatation <<

Text preview - extract from the document
T   ECHNICAL INFORMATION
     Models No.           HR2400
                                                                                                          New Tool


     Description          24 mm (15/16") Rotary Hammer

CONCEPTION AND MAIN APPLICATIONS
  Compact, lightweight but powerful rotary hammer with                            333mm (13-1/8")
  three action modes.




                                                                                                                185mm (7-5/16")
                                                                                 77mm (2-13/16")


  Specifications
                                                              Continuous Rating (W)
     Voltage (V)      Current (A)        Cycle (Hz)                                            Max. Output(W)
                                                             Input          Output
        100               7.0               50/60            660              300                   550
        115               6.0               50/60            660              280                   550
        200               4.0               50/60            750              330                   550
        220               3.6               50/60            750              330                   550
        230               3.4               50/60            750              330                   550
        240               3.3               50/60            750              330                   550

   No Load Speed                             0- 1,200 R/min
   Blows per Minute                          0- 4,200
   Capacities      Concrete                  24mm (15/16")
                   Steel                     13mm (1/2")
                   Wood                      24mm (15/16") for ship auger bits
                                             38mm (1-1/2") for spade bits
   Net Weight                                2.4kg (5.3lbs)


  Standard equipment
   Depth Gauge, Grip, Steel Carrying Case

  Optional accessories
   Various sizes of Tungsten-carbide Bits, Drill Chuck Assembly, Chuck Key, Holder Driver, Chisel Adapter, Bull -
   Point, Cold Chisel, Anchor Setting Tool, Taper Shank Adapter, Cotter, Bit Grease, Blow-out Bulb, Dust Cup,
   Dust Extractor Attachment

  Features and benefits
   1. Double insulated for operator safety
   2. Less reaction and faster drilling thanks to new hammering mechanism
   3. Accepts Makita genuine bits, SDS Plus bits and Hilti bits.
   4. Can be connected to Makita Dust Collector (Models 420 and 420S) or Makita Vacuum Cleaner (Models 402, 405,
      etc.) using a dust extractor attachment (optional accessory). So clean and dustless operation can be performed.
   5. Grease pack lubrication system: no more messy oiling
   6. Chisel adapter (optional accessory) allows use of bull point and cold chisel.
   7. See the attached sheet for more information.

 The standard equipment for the tools shown may differ form country to country
                                   Built-in torque limiter protects
                                   operator by automatic disengagement
                                   whenever more than specified torque l
                                   evel is reached



                                                                                                                  In-line pistol grip comfortably
                                                                                                                  fitted in operator's hand

         Can change bits easily by simply
         turning the change ring                                      No vent holes in left side of the
                                                                      housing; cooling air flow away from
                                                                      operator




Both side grip and depth gauge
can be installed easily with one
clamp screw




                                                                       Large trigger switch (variable speed
                                                                       switch) with lock button




         Side grip swings 360
