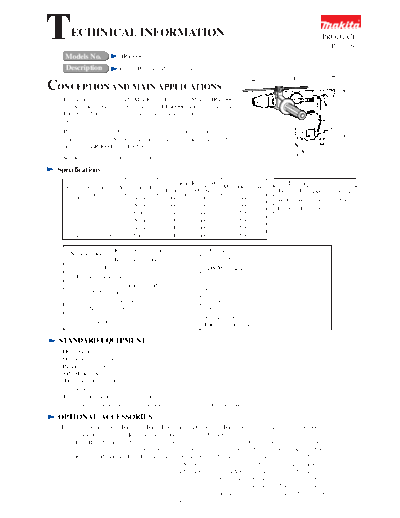

Image preview - the first page of the document
HR4500C-TE


>> Download HR4500C-TE documenatation <<

Text preview - extract from the document
T     ECHINICAL INFORMATION                                                                            PRODUCT
                                                                                                         P 1 / 16
    Models No.           HR4500C
    Description          Rotary Hammer 45mm (1-3/4")
                                                                                             L
CONCEPTION AND MAIN APPLICATIONS
   For matured line-up of SDS-Max Rotary Hammers, Model HR4500C
   has been developed as a sister model to HR4000C(40mm;1-3/4") and
   HR5001C(50mm;2") which are already popular to users around the                                            H
   world.
   Performing excellent drilling in concrete within the diameter range
   from 25mm(1") to 45mm(1-3/4"), it also has the same features and
   benefits as HR4000C and HR5001C.
  See next page for detailed information.                                                    W

 Specifications
                                            Continuous Rating (W)                          Dimensions : mm ( " )
   Voltage (V) Current (A) Cycle (Hz)                             Max. Output(W)
                                             Input      Output                          Length (L) 488mm (19-1/4")
      100          15          50/60         1,300       600         1,500              Width (W) 118mm (4-5/8")
      110          13          50/60         1,300       600         1,500              Height (H) 278mm (11")
      120          13          50/60         1,250       600         1,500
      220          6.6         50/60         1,300       600         1,500
      230          6.6         50/60         1,300       600         1,500
      240          6.8         50/60         1,300       600         1,500

                        Rotations per minute : rpm=min-1    120 - 240
     No load speed
                        Blows per minute : bpm=min-1        1,250 - 2,550
                    Bit type                                SDS-Max shank bit
         Diameter of shank : mm (")                         18 (11/16")
                         Tungusten-carbide
   Drilling capacities tipped bit                           45 (1-3/4")
   : mm (")              Core bit                           125 (4-7/8")
              Net weight : Kg (lbs)                         7.8 (17.2)
                                                            Standard spec. : 5 (16.4)
              Cord length : m (ft)                          European spec. : 4 (13.1)

  STANDARD EQUIPMENT
  Depth Gauge ----------------------- 1pc.
  Grease Vessel (Bit Grease) ------- 1pc.
  Plastic Carrying Case ------------- 1pc.
  Side Handle Assembly
  (D-shaped side handle) ----------- 1pc.
  Grip 36 Assembly
  (Bar style side handle) ------------ 1pc.
  The standard equipment for the machine may differ from country to country.

  OPTIONAL ACCESSORIES
  Hammer Grease (30cc), Blow-out Bulb, Dust Cup 5, Dust Cup 9, Bull Point, Cold Chisel, Scaling Chisel,
  Clay Spade, Bushing Tool, Rammer, Safety Goggles, Core Bit Adapter,
  Core Bits; Hole diameter : 20mm(13/16"), 30mm(1-3/16"), 35mm(1-3/8"), 40mm(1-9/16"), 45mm(1-3/4"),
                             54mm(2-1/8"), 65mm(2-9/16"), 79mm(3-1/8"), 105mm(4-1/8"), 118mm(4-5/8")
  Tungusten-carbide Tipped Bits; Bit diameter : 10mm(3/8"), 10.5mm(7/16"), 11mm(7/16"), 12mm(15/32"),
                                                12.5mm(1/2"), 12.7mm(1/2"), 13.5mm(1/2"), 14.3mm(9/16"),
                                                14.5mm(9/16"), 16mm(5/8"), 17mm(11/16"), 17.5mm(11/16"),
                                                18mm(11/16"), 19mm(3/4"), 20mm(13/16"), 21.5mm(7/8"),
                                                22mm(7/8"). 24mm(15/16"), 25mm(1"), 25.4mm(1"), 26mm(1"),
                                                28mm(1-1/8"), 30mm(1-3/16"), 32mm(1-1/4"), 35mm(1-3/8"),
                                                38mm(1-1/2")
                                                                                                                 P 2 / 16
Features and benefits
 The Outstanding Chipping Power in This Class
See next page for the excellent results of various chipping/drilling tests.
 Body Wholly Covered No electric shock to operator, even if bit accidentally hits against laid electric cables.
                                Barrel is also covered with resin, and so, it is possible to do chipping operations while
 with Resin                     holding barrel with your hand.
 Zig-Zag Varnish on Armature Coil Protects Armature against dust, and disperses heat effectively.

                            2        3      4     5            6        7


                     1                                                      8


                           15                                               9
                                14
                                                                            10

                                                13     12          11
1 Accepts SDS-Max Shank Bits
2 Bit can be Installed or Removed by Simply Sliding Chuck Cover.
3 No Hammering While Idling
    Air in the cylinder is not compressed unless tool is pressed against ground.
    This function ensures machine's long life.
4 Bar Handle Plus D-Shape Handle As Standard Accessories
5 Large Change Lever
     Easy to change action mode to "hammering only" or "Rotation with hammering".
6 Easy-to-Operate Large Trigger
    Fingers are free from fatigue even in along continuous operation.
7 Large Rear Handle
    Can be gripped with both hands. - convenient for downward chipping operations.
8 Accessible to Switch or Power Supply Cord Just by Removing Two Screws of Handle Cover
9 Service Reminder Lamps
    Light up in green when the machine is switched on, and if any trouble, tell you its cause;
     Light up, but the machine does not start.
     Cause : wear of carbon brushes or trouble(s) in electric circuit or motor
     Does not light up, and the machine does not start.
     Cause : disconnection in mains switch or power supply cord
    Light up in red nearly 8 hours before carbon brushes need servicing.
10 Electronic Speed Control Dial
    Optimum hammering speed can be selected for a wide range of applications. Setting to low speed, ideal for such
    a light chipping works as scraping tiles, removing bricks joint.

11 Large and Tough Cord Guard
    Also excellent in flexibility to protect cable from disconnection

12 Auto Shut-off Carbon Brushes
    Protect commutator and tell the time for replacement.
13 Torque Limiter Actuated by Ball-Clutch
    Assures steady torque control even after a long time operation.
14 Chisel can be Locked at 12 Positions Through 360 .
    By turning change ring while pushing it forward, the chisel angle can be adjusted without taking out the inserted chisel.
15 Further Improvement in Dust Proof Structure
                                                                                                             P 3 / 16
Comparison chart
The four graphs drawn below show the results of our chipping or drilling tests under the following conditions;
 material : concrete whose compressive strength is 350 kgf/cm2
 in horizontal application
The results are shown in relative values when setting Model A-a of competitor A's data as 100.
    Chipping amount
             Little             50                    100                            150         Much 200

HR4500C                                                            115

A-1                                                          105

A-a                                                         100
B                                                      95

HR5001C                                                                 120

HR3850                                           85
HR4000C                                            90

  Drilling speed
