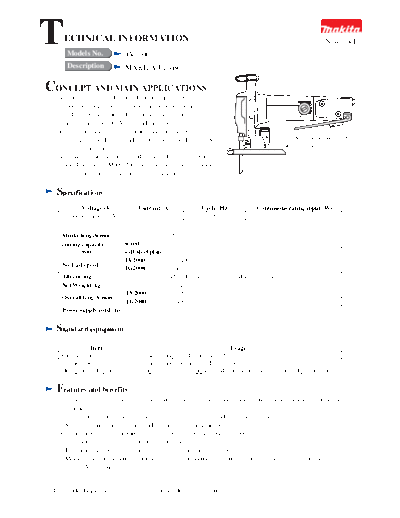

Image preview - the first page of the document
JV2000-TE


>> Download JV2000-TE documenatation <<

Text preview - extract from the document
T    ECHNICAL INFORMATION
      Models No.             JV2000
                                                                                                                 New Tool


      Description            MAKITA Jig saw

CONCEPT AND MAIN APPLICATIONS
   This jigsaw has been developed on the request of Over sea
   market and is equipped with orbitable movement 4-step
   speed change mechanism. Its stroke is longer than that of the
   sister machine JG1600,JV1600 and the motor power is
   increased to make a high efficiency machine. JV2000 has a no
   step variable speed switch and JG2000 single speed switch. All                                   Safetylock (only JG2000)
   the other functions are the same.                                                           Orbital change lever
   The blade of this machine should be of the Bosch type orbital
   blade. The blade of MAKITA cannot be used. This machine is ,
   for the time being, the machine for exportation.


  Specifications
            Voltage (V)           Current (A)               Cycle (Hz)              Continuous rating input (W)
       single-phase 100V            3.7                      50/60                           350


    Stroke length(mm)                           20 mm
    cutting capacity         wood               60 mm
          (mm)               soft steel plate   6 mm
                             JV2000             0-3,400
    No load speed
                             JG2000             3,400
    Tilt cutting                                45
