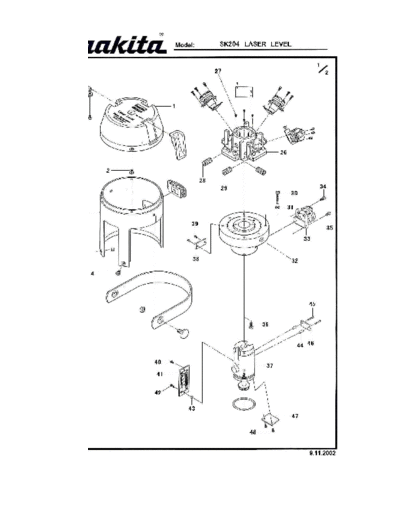

SK204 PARTLIST
001   TKLV5289EA   TOP CAP ASS'Y(INC.C10-C30)       1
002   TK0C3060SS   OVAL COUNTERSUNK HD.SCREW M3X6   4
003   TKLV5023EA   BODY HOUSING ASS'Y INC.C10-C30   1
004   TK0C3060SS   OVAL COUNTERSUNK HD.SCREW M3X6   4
005   TK0LV5053S   BASE COMP.                       1
006   TK03P2040N   PAN HD.SCREW M2X4                2
007   TK00LV5019   CIRCUIT BOARD(C)                 1
008   TK00LV5056   WIRE COVER                       1
009   TK03P2030B   PAN HD.SCREW M2X3                4
010   TKLV5048EA   POWER/MODE PANEL COMP.           1
011   TK00C3060B   OVAL COUNTERSUNK HD.SCREW M3X6   2
012   TKLV39702S   BATTERY BOX COMP.                1
013   TK00C3060B   OVAL COUNTERSUNK HD.SCREW M3X6   1
014   TK0LV39712   BATTERY BOX COVER                1
015   TKLV50573S   YOKE COMP.                       1
016   TK0P3060SS   PAN HD.SCREW M3X6                3
017   TK00LV5059   CONTROL PLATE                    1
018   TK00LV1933   RING NUT                         1
019   TK0LV5061S   OUTER FRAME COMP.                1
020   TK0000WW40   WAVE WASHER M4                   3
021   TK0LV5074S   FOOT COMP                        3
022   TK0H4014SS   HEX.SOCKET HD.CAP SCREW M4X14    3
023   TK00LV5065   RETAINING RING                   1
024   TK0LV5068S   BOTTOM FRAME COMP.               1
025   TK00C3060B   OVAL COUNTERSUNK HD.SCREW M3X6   3
026   TK0LV5477A   VERTICAL LASER-UNIT ASS'Y        1
027   TK000F2550   COUNTERSUNK HD.SCREW M2.5X5      4
028   TK00000S80   HEX.SOCKET HD.SCREW M8           1
029   TK00000S80   HEX.SOCKET HD.SCREW M8           1
030   TK000P3020   PAN HD.SCREW M3X20               4
031   TK0000SW30   SPRING LOCK WASHER 2 M3          4
032   TK0LV5040S   GIMBAL COMP.                     1
033   TK0LV5453S   HORIZONTAL LASER HD.COMP.        1
034   TK00LV5575   LASER LINE ADJUSTING SCREW       1
035   TK03P2040N   PAN HD.SCREW M2X4                2
036   TK000F3060   COUNTERSUNK HD.SCREW M3X6        4
037   TK0LV5483A   GYRO ASS'Y                       1
038   TK00LV5019   CIRCUIT BOARD(C)                 1
039   TK03P2040N   PAN HD.SCREW M2X4                2
040   TK03P2040N   PAN HD.SCREW M2X4                1
041   TK00LV5465   CONNECTING CIRCUIT BOARD         1
042   TK03P2060N   PAN HD.SCREW M2X6                1
043   TK00ST2025   SPACER 2X2.5                     1
044   TK00ST2090   SPACER 2X9                       2
045   TK000P2012   PAN HD.SCREW M2X12               2
046   TK00LV5463   TRANS.CIRCUIT BOARD              1
047   TK00LV5464   SENSOR CIRCUIT BOARD             1
048   TK0P2050SS   PAN HD.SCREW M2X5(SUS)           2
A01   TK02043000   TOOL CARRYING CASE               1
A02   TK02044000   CARTON                           1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSES        1
A04   TK0LD11001   RECEIVER UNIT                    1
A05   TK00LD1027   RECEIVER UNIT CASE               1
A06   TK0LD1630A   RECEIVER CLAMP SET               1
