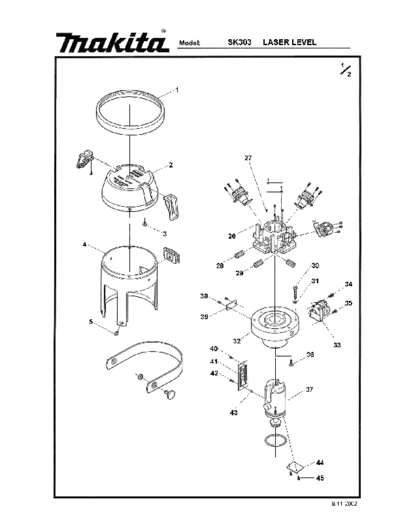

Image preview - the first page of the document
SK303-TE-AT


>> Download SK303-TE-AT documenatation <<

Text preview - extract from the document
SK303 PARTLIST
001   TK00LV5511   RING                          1
002   TKLV5289EA   TOP CAP ASS'Y(INC.C10-C30)    1
003   TK000C3060   OVAL COUNTERSUNK HD.SCRE 4
004   TKLV5023EA   BODY HOUSING ASS'Y INC.C10- 1
005   TK000C3060   OVAL COUNTERSUNK HD.SCRE 4
006   TK00LV5512   SEAT FOR TRACK CIRCUIT PLA 1
007   TK0F3060SS   COUNTERSUNK HD.SCREW M3X4
008   TK00LV5359   WIRE COVER                    1
009   TK03P2030B   PAN HD.SCREW M2X3             4
010   TKLV5274EA   POWER/MODE PANEL COMP.        1
011   TK00C3060B   OVAL COUNTERSUNK HD.SCRE 2
012   TK0LV5562S   BASE COMP.                    1
013   TK03P2060B   PAN HD.SCREW M2X6             4
014   TK03P2040N   PAN HD.SCREW M2X4             2
015   TK00LV5019   CIRCUIT BOARD(C)              1
016   TKLV39486S   BATTERY BOX COMP.             1
017   TK00C3060B   OVAL COUNTERSUNK HD.SCRE 1
018   TK00LV3971   BATTERY BOX COVER             1
019   TKLV50573S   YOKE COMP.                    1
020   TK0P3060SS   PAN HD.SCREW M3X6             3
021   TK00LV5513   TRACK CIRCUIT PLATE           1
022   TK03P2040N   PAN HD.SCREW M2X4             4
023   TK0LV50593   CONTROL PLATE                 1
024   TK00LV1933   RING NUT                      1
025   TK0LV5533A   DRIVING UNIT ASS'Y INC.C10-C3 1
026   TK0LV5477A   VERTICAL LASER-UNIT ASS'Y     1
027   TK000F2550   COUNTERSUNK HD.SCREW M2 4
028   TK00000S80   HEX.SOCKET HD.SCREW M8        1
029   TK00000S80   HEX.SOCKET HD.SCREW M8        1
030   TK000P3020   PAN HD.SCREW M3X20            4
031   TK0000SW30   SPRING LOCK WASHER 2 M3       4
032   TK0LV5040S   GIMBAL COMP.                  1
033   TK0LV5453S   HORIZONTAL LASER HD.COMP. 1
034   TK00LV5575   LASER LINE ADJUSTING SCREW 1
035   TK03P2040N   PAN HD.SCREW M2X4             2
036   TK0F3060SS   COUNTERSUNK HD.SCREW M3X4
037   TK0LV5483A   GYRO ASS'Y                    1
038   TK03P2040N   PAN HD.SCREW M2X4             2
039   TK00LV5019   CIRCUIT BOARD(C)              1
040   TK03P2040N   PAN HD.SCREW M2X4             1
041   TK00LV5465   CONNECTING CIRCUIT BOARD 1
042   TK03P2060N   PAN HD.SCREW M2X6             1
043   TK00ST2025   SPACER 2X2.5                  1
044   TK00LV5464   SENSOR CIRCUIT BOARD          1
045   TK0P2050SS   PAN HD.SCREW M2X5(SUS)        2
A01   TK03033000   TOOL CARRYING CASE            1
A02   TK03034000   CARTON                        1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSE 1
A04   TK0RCN1100   REMOTE CONTROLLER             1
