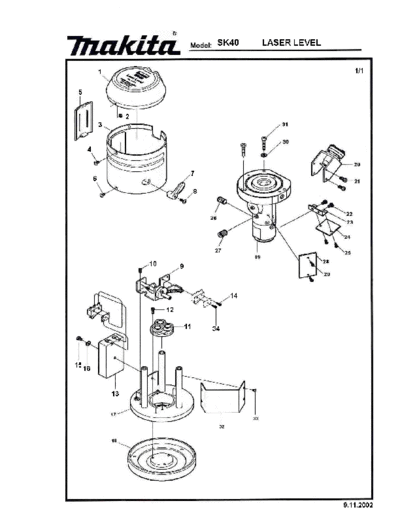

Image preview - the first page of the document
SK40-TE-AT


>> Download SK40-TE-AT documenatation <<

Text preview - extract from the document
SK40 PARTLIST
001   TK0LV5921S   TOP CAP COMP.              1
002   TKHN230BSN   HEX.NUT M3                 3
003   TKLV5923ES   BODY HOUSING               1
004   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE   3
005   TK00LV5938   BATTERY BOX COVER          1
006   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE   3
007   TK0LV45592   SWITCH LEVER               1
008   TKT3016SSB   TRUSS HD.SCREW M3X16       1
009   TK0LV5795S   LOCK LEVER BASE            1
010   TK00P2560Z   PAN HD.SCREW M2.5X6        4
011   TK0LV5930S   YOKE COMP.                 1
012   TK00P2560Z   PAN HD.SCREW M2.5X6        3
013   TK0LV5918S   BATTERY BOX                1
014   TK03P2080B   PAN HD.SCREW M2X8          1
015   TK0P3050SS   PAN HD.SCREW M3X5          1
016   TK0000SW30   SPRING LOCK WASHER 2 M3    1
017   TK0LV5932S   BASE.COMP.                 1
018   TK0LV5933S   FOOT BASE COMP.            1
019   TK0LV5914S   LASER BASE COMP.           1
020   TK0LV5807S   VERTICAL LASER HD.COMP.    1
021   TK03P2050N   PAN HD.SCREW M2X5          4
022   TK0P2030BS   PAN HD.SCREW M2X3          2
023   TK00LV5809   SENSOR BASE                1
024   TK00LV5811   SENSOR CIRCUIT BOARD       1
025   TK0P2030BS   PAN HD.SCREW M2X3          2
026   TK00000S80   HEX.SOCKET HD.SCREW M8     1
027   TK00000S80   HEX.SOCKET HD.SCREW M8     1
028   TK00LV5917   CONNECTER CIRCUIT          1
029   TK03P2040N   PAN HD.SCREW M2X4          2
030   TK0000SW30   SPRING LOCK WASHER 2 M3    2
031   TK00P3016Z   PAN HD.SCREW M3X16         3
032   TK00LV5940   WIRE COVER                 1
033   TK03P2030B   PAN HD.SCREW M2X3          4
034   TK03P2010N   PAN HD.SCREW M2X10         1
A01   TK00403100   TOOL CARRYING CASE         1
A02   TK00404000   CARTON                     1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSE   1
