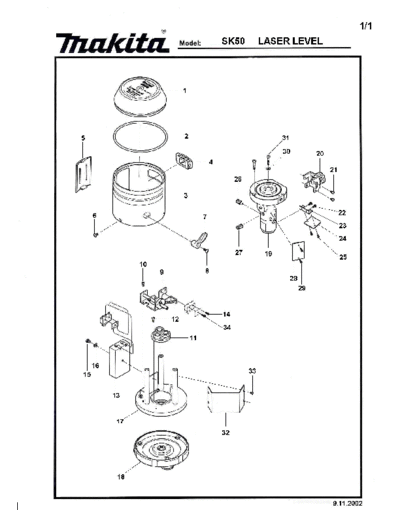

Image preview - the first page of the document
SK50-TE-AT


>> Download SK50-TE-AT documenatation <<

Text preview - extract from the document
SK50 PARTLIST
001   TK0LV5962S   TOP CAP COMP.               1
002   TK00LV5970   O RING 74.6X3.53            1
003   TKLV5963ES   BODY HOUSING                1
004   TK0LV5070S   HORIZONTAL EXIT FRAME COM   1
005   TK00LV5938   BATTERY BOX COVER           1
006   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE    3
007   TK0LV45592   SWITCH LEVER                1
008   TKT3016SSB   TRUSS HD.SCREW M3X16        1
009   TK0LV5795S   LOCK LEVER BASE             1
010   TK00P2560Z   PAN HD.SCREW M2.5X6         4
011   TK0LV5930S   YOKE COMP.                  1
012   TK00P2560Z   PAN HD.SCREW M2.5X6         3
013   TK0LV5918S   BATTERY BOX                 1
014   TK03P2080B   PAN HD.SCREW M2X8           1
015   TK0P3050SS   PAN HD.SCREW M3X5           1
016   TK0000SW30   SPRING LOCK WASHER 2 M3     1
017   TK0LV5932S   BASE.COMP.                  1
018   TK0LV5967S   FOOT BASE COMP.             1
019   TK0LV5954S   LASER BASE COMP.            1
020   TK0LV5808S   HORIZONTAL LASER HEAD COM   1
021   TK03P2050N   PAN HD.SCREW M2X5           4
022   TK0P2030BS   PAN HD.SCREW M2X3           2
023   TK00LV5809   SENSOR BASE                 1
024   TK00LV5811   SENSOR CIRCUIT BOARD        1
025   TK0P2030BS   PAN HD.SCREW M2X3           2
026   TK00000S80   HEX.SOCKET HD.SCREW M8      1
027   TK00000S80   HEX.SOCKET HD.SCREW M8      1
028   TK00LV5917   CONNECTER CIRCUIT           1
029   TK03P2040N   PAN HD.SCREW M2X4           2
030   TK0000SW30   SPRING LOCK WASHER 2 M3     2
031   TK00P3016Z   PAN HD.SCREW M3X16          3
032   TK00LV5940   WIRE COVER                  1
033   TK03P2030B   PAN HD.SCREW M2X3           4
034   TK03P2010N   PAN HD.SCREW M2X10          1
A01   TK00403100   TOOL CARRYING CASE          1
A02   TK00504000   CARTON                      1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSE    1
