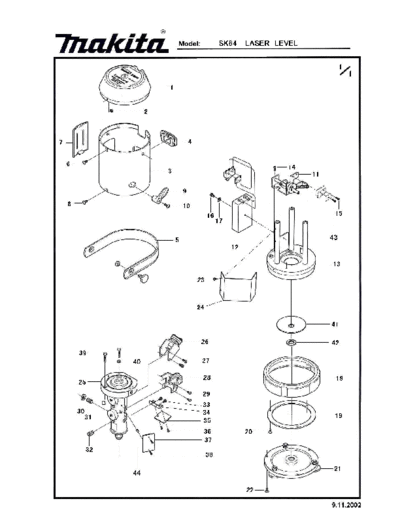

Image preview - the first page of the document
SK64-TE-AT


>> Download SK64-TE-AT documenatation <<

Text preview - extract from the document
SK64 PARTLIST
001   TK0LV5922S   TOP CAP COMP.             1
002   TKHN230BSN   HEX.NUT M3                3
003   TKLV7212ES   BODY HOUSING              1
004   TK0LV5070S   HORIZONTAL EXIT FRAME COM 1
005   TK0LV7219S   TOOL-STRAP                1
006   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE 3
007   TK00LV5938   BATTERY BOX COVER         1
008   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE 3
009   TK0LV45592   SWITCH LEVER              1
010   TKT3016SSB   TRUSS HD.SCREW M3X16      1
011   TK0LV5795S   LOCK LEVER BASE           1
012   TK0LV5918S   BATTERY BOX               1
013   TK0LV7216S   BASE COMP.                1
014   TK00P2560Z   PAN HD.SCREW M2.5X6       4
015   TK03P2080B   PAN HD.SCREW M2X8         2
016   TK0P3050SS   PAN HD.SCREW M3X5         1
017   TK0000SW30   SPRING LOCK WASHER 2 M3   1
018   TK00LV7217   BASE FRAME                1
019   TK00LV5804   BASE RING                 1
020   TK0F3060SS   COUNTERSUNK HD.SCREW M3X3
021   TK0LV7218S   FOOT BASE                 1
022   TK00F3060B   COUNTERSUNK HD.SCREW M3X3
023   TK03P2030B   PAN HD.SCREW M2X3         4
024   TK00LV5822   WIRE COVER                1
025   TK0LV7204S   LASER BASE COMP.          1
026   TK0LV5807S   VERTICAL LASER HD.COMP.   1
027   TK03P2050N   PAN HD.SCREW M2X5         4
028   TK0LV5808S   HORIZONTAL LASER HEAD COM 1
029   TK03P2050N   PAN HD.SCREW M2X5         4
030   TK000HN380   HEX.NUT M8                1
031   TK00000S80   HEX.SOCKET HD.SCREW M8    1
032   TK00000S80   HEX.SOCKET HD.SCREW M8    1
033   TK03P2030N   PAN HD.SCREW M2X3         2
034   TK00LV5809   SENSOR BASE               1
035   TK00LV5811   SENSOR CIRCUIT BOARD      1
036   TK03P2030N   PAN HD.SCREW M2X3         2
037   TK00LV5780   CONNECTER CIRCUIT         1
038   TK03P2060N   PAN HD.SCREW M2X6         2
039   TK00P3016Z   PAN HD.SCREW M3X16        3
040   TK0000SW30   SPRING LOCK WASHER 2 M3   2
041   TK00LV3896   CONTROL PLATE             1
042   TK0LV27292   RING NUT                  1
043   TK03P2010N   PAN HD.SCREW M2X10        2
044   TK00ST2025   SPACER 2X2.5              2
A01   TK00403100   TOOL CARRYING CASE        1
A02   TK00644000   CARTON                    1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSE 1
