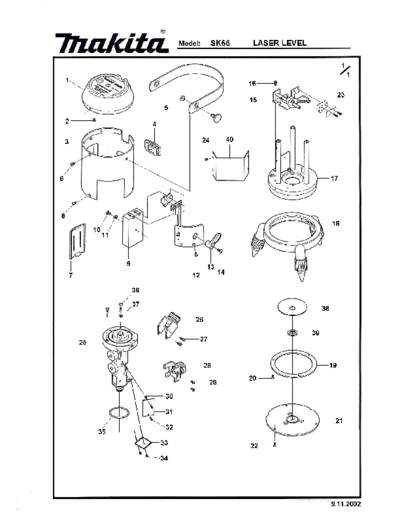

SK66 PARTLIST
001   TK0LV5827S   TOP CAP COMP.             1
002   TKHN230BSN   HEX.NUT M3                3
003   TKLV57832S   BODY HOUSING              1
004   TK0LV5070S   HORIZONTAL EXIT FRAME COM 1
005   TKLV42702S   TOOL-STRAP                1
006   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE 3
007   TK00LV5938   BATTERY BOX COVER         1
008   TK0C3060SS   OVAL COUNTERSUNK HD.SCRE 3
009   TK0LV5798S   POWER/MODE PANEL COMP.IN 1
010   TK0P3050SS   PAN HD.SCREW M3X5         1
011   TK0000SW30   SPRING LOCK WASHER 2 M3   1
012   TKC3060SSB   OVAL COUNTERSUNK HD.SCRE 2
013   TK0LV45592   SWITCH LEVER              1
014   TKT3016SSB   TRUSS HD.SCREW M3X16      1
015   TK0LV5795S   LOCK LEVER BASE           1
016   TK00P2560Z   PAN HD.SCREW M2.5X6       4
017   TKLV58002S   BASE.COMP.                1
018   TK0LV5802S   FOOT COMP.                1
019   TK00LV5804   BASE RING                 1
020   TK00F3060B   COUNTERSUNK HD.SCREW M3X3
021   TK0LV5805S   BASE PLATE COMP.          1
022   TK0F3060SS   COUNTERSUNK HD.SCREW M3X3
023   TK03P2010N   PAN HD.SCREW M2X10        2
024   TK03P2040N   PAN HD.SCREW M2X4         4
025   TKLV57742S   LASER BASE COMP.          1
026   TK0LV5807S   VERTICAL LASER HD.COMP.   1
027   TK03P2050N   PAN HD.SCREW M2X5         4
028   TKLV58082S   HORIZONTAL LASER HD.COMP. 1
029   TK03P2050N   PAN HD.SCREW M2X5         4
030   TK00ST2025   SPACER 2X2.5              2
031   TK00LV5780   CONNECTER CIRCUIT         1
032   TK03P2060B   PAN HD.SCREW M2X6         2
033   TK00LV5811   SENSOR CIRCUIT BOARD      1
034   TK03P2030N   PAN HD.SCREW M2X3         2
035   TK00LV5702   O RING 22.5X2.5           1
036   TK0000SW30   SPRING LOCK WASHER 2 M3   2
037   TK00P3016Z   PAN HD.SCREW M3X16        3
038   TK00LV3896   CONTROL PLATE             1
039   TK0LV27292   RING NUT                  1
040   TK00LV5822   WIRE COVER                1
A01   TK00663000   TOOL CARRYING CASE        1
A02   TK00664000   CARTON                    1
A03   TK0LEG2000   LASER ENHANCEMENT GLASSE 1
