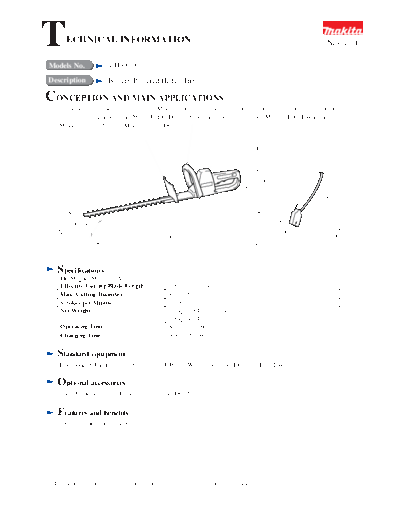

Image preview - the first page of the document
UH303D-TE


>> Download UH303D-TE documenatation <<

Text preview - extract from the document
T           ECHNICAL INFORMATION                                                                               New Tool


Models No.                 UH303D

Description                Battery-Powered Hedge Trimmer

CONCEPTION AND MAIN APPLICATIONS
       These hedge trimmers are operated by Makita battery 121 (lead-acid battery) which can be slung over a shoulder. So
       they are very maneuverable .Model UH303D is sold without battery and charger. Model UH303DW includes a
       Makita battery 121 and a Makita charger DC121.




                                                                                        ")
                                                                                 (5-3/8
                                                                                     137mm
")
-1/2 (5
 0mm




                                                          ")
                                                   (26-1/4
       14




                                             669mm
                                                                                    Battery 121



     Specifications
       DC Magnet Motor (12 V)
       Effective Cutting Blade Length            300 mm (11-3/4")
       Max. Cutting Diameter                     8 mm (5/16")
       Strokes per Minute                        1,200
       Net Weight                                1.3 kg (2.9 lbs) for tool
                                                 1.9 kg (4.2 lbs) for battery
       Operating Time                            Approx. 1 hour on a single charge
       Charging Time                             Approx.8 hours


     Standard equipment
       Blade Guard (Blade Cover), Battery 121 (UH303DW only), Charger DC121 (UH303DW only)


     Optional accessories
       Shear Blade Assembly, Battery 121, Charger DC121


     Features and benefits
       1.Refer to the attached sheet.




 The standard equipment for the tools shown may differ form country to country
Blade guard (blade cover)can                                          Loop handle for easy gripping
be used as an oil reservoir
as well

                                     Hand guard (hand protector) to
                                     rotect your hands
                                                                                             Equipped with electric brake




                                                                                                Lock-off lever to prevent acci-
                                                                                                dental starting



                      Sharp blades assure smooth
                      cutting




                                                                                     Strain relief hook to prevent
                                                                                     battery cord from being acci-
                               Makita battery 121                                    dentally disconnected
                               (lead-acid battery)
