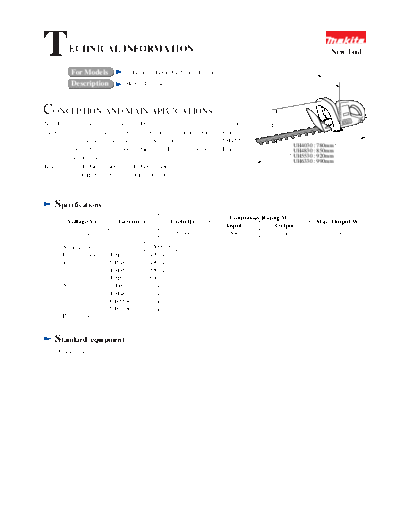

Image preview - the first page of the document
>> Download UH6330-TE documenatation <<
Text preview - extract from the document
T ECHNICAL INFORMATION New Tool
For Models UH4030,UH4830,UH5530,UH6330
215mm
Description Hedge Trimmers
CONCEPTION AND MAIN APPLICATIONS
199mm
New Hedge trimmers with Clutch and Double hand- switches, of which handle
shape was completely changed for easy operation of various working postures
in trimming horisonlal/vertical faces of hedges. Comparing to existing UH4520
UH4030 : 780mm
series, the cost and weight has been reduced, and Electric brake to stop Blade UH4830 : 850mm
within 0.5 sec. is attached. UH5530 : 920mm
UH6330 : 990mm
Blade length: UH4030 400mm UH4830 480mm
UH5530 550mm UH6330 630mm
Specifications
Continuous Rating(W)
Voltage(V) Current(A) Cycle(Hz) Max. Output(W)
Input Output
220-240 2.3 50-60 500 230 400
No load speed 1500rpm
Effective blade UH4030 400mm
length UH4830 480mm
UH5530 550mm
UH6330 630mm
Net weight UH4030 3.0kg
UH4830 3.1kg
UH5530 3.2kg
UH6330 3.3kg
Power supply cord 0.3m
Standard equipment
Blade cover
Features and benefits
3.0kgs(UH4030)
Double hand-switches
If releasing either one Switch
Handle-shape for easier operation lever, Blade will stop.
Good shape for easy handling in
trimming upper/side faces of hedge
and shrubs , etc.
Both-blades driving system
for sharp trimming
W/ Blade cover W/ Clutch Hook to prevent connecting
If thick branch or something is cord from coming off.
bitten, Clutch works to protect Gear.
W/ Electric brake (Blade stops within 0.5 sec.)
If releasing either one Switch lever,
Blade will stop instantly.
Shape of Shear blade ( corresponding to European new standards)
( corresponding to European new standards)
Repair
1 Disassembly of Housing
(1) Loosen Tapping screws/Flange PT4x20s (2 pcs) fixing Protector with Grip, and take away Protector.
Tapping screw/Flange PT4x20
Grip
Protector
Blade cover
(2) Loosen Pan head screwM5x25s(2pcs) fixing Grip with Housing, and pull out Grip toward the arrow direction,
extending it outside a little.
Extend Grip a little
Pan-head screw
M5x25
Pull out Grip
(3) Loosen Tapping screwsPT4x20(8pcs) fixing Housing R/L and Pan-head zscrew M4x40s(2pcs) fixing
Shear blade assembly , and separate Housing R from Housing L.
Tapping screw
PT4x20
Pan-head screw M4x40
2 Replacing Gear Assembly65
When replacing Gear assembly65, apply Makita Grease No.1 --- 0.5g to Pin 8, 2 g all around Helical gear 65,
and 1 g on outer circle of Crank respectively.
Apply Makita Grease No.1, 0.5 g
Helical gear 65 Pin8
Apply Makita Grease
No.1 , 2g
Crank
Apply Makita Grease, 1g
3 Replacing Shear blade assembly
When replacing Shear blade assembly, put Shear Blades, A and B, into driving Crank each, and place
them into positioning Pin for Housing L surely.
Shear blade A
Positioning Pin
Housing L
Shear Blade B
Shear blade assembly
4 Tightening torque of Tapping screw/Flange PT4x20
Tighten them with tool setup torque , 13~18 kgs.cm.
Wiring Diagram
For 220/240V areas (Europe, Asia, Oceania)
Yellow Yellow
NC NC
Black Choke Purple
NO COM NO COM coil A
Switch Switch
Black
Power supply cord
Terminal Black
Noise
suppressor
Insulated
connector Receptacle
White Receptacle
Choke
coil B Orange
