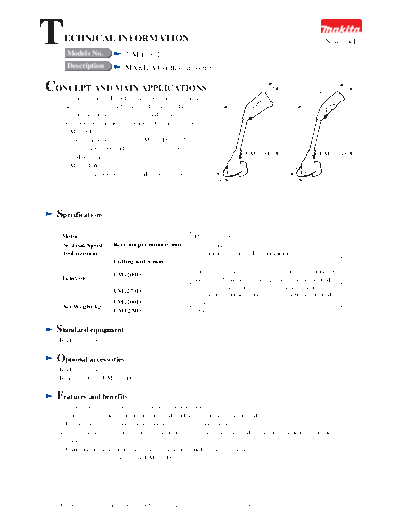

Image preview - the first page of the document
UM1200D-TE


>> Download UM1200D-TE documenatation <<

Text preview - extract from the document
T   ECHNICAL INFORMATION
     Models No.             UM 1200 D
                                                                                                               New Tool


     Description            MAKITA Cordless grass trimmer

CONCEPT AND MAIN APPLICATIONS                                              391                           380
    Lawn mowing and weeds cutting becomes easy and the cross
    section of the cut weed is neat. This is a multi-purpose
    cordless lawn mower with nylon blade which offers an




                                                                                          773




                                                                                                                       770
    effective mowing near the fence and around the trees.
    UM 1200D
      For the time being, we treat UM1200D only. The
      charger(DC 7000)and the battery(battery7000) are to be
                                                                            (UM1200D)                    (UM1270D)
      sold separately.
    UM1270DW
             with built-in battery and battery charger       12                                 12
                                                                6                                    0




  Specifications
   Motor                                               DC magnet motor
   No Load Speed       Rotation per minute(/min.)      13,000/min.
   Tool size(mm)                                       120 in lengthx18 in widthx2 in thickness
                       Cutting width(mm)               120 mm
                                                       1 hour's charging allows about 20minutes' continuous
                       UM1200D
   Function                                            operation(35minutes'continuous operation with no load)
                                                       3 hours' charging allows about 15minutes'continuous
                       UM1270D
                                                       operation(25minutes'continuous operation with no load)
                       UM1200D                         1.0 kg
   Net Weight(kg)
                       UM1270D                         0.8 kg


  Standard equipment
  Blade---10 sheets


  Optional accessories
  Blade---20 sheets
  Battery 7000(for UM 1200D)


  Features and benefits
  1. Cutting near the fence is easy thanks to the nylon blade.
  2. This tool cuts better than with nylon threads and safer than with metallic blade.
  3. Replacement of the blade can be made easily without using any tool.
  4. Light weight allows single hand operation and the compact size of the body makes it possible to cut in a narrow
     place.
  5. Unintentional activation of the switch can be prevented thanks to lock off lever.
  6. The battery is of cartridge type(UM1200D only)




  The standard equipment for the tools shown may differ form country to country
Capacity
  Cutting capacity by one charging
  UM1200D
  Cutting of about 16m 2    of grass of about 50mm of length
  UM1270D
  Cutting of about 12m 2    of grass of about 50mm of length




Repair
1. How to take off the safety cover
Insert a flat driver in the slit at the rear part of the motor housing and depress the nail of the safety cover and pull
out the safety cover(see fig.1)




        Insert a flat driver here




                                                                                                       Pull out
                                                     Fig. 1                              Nail
2. Replacement of the blade holder
   For fitting of the blade holder, press the motor shaft until the clearance between the end face of the blade holder
   and the frontal face of the motor is 1.5mm-2.0mm.(see the Fig.2)




                                                                Moter
                                                                        Arbor press




                                                       Fig. 2
                                Blade holder




3. Fixation of the screw
   The screw is a tapping screw. Excessive tightening should be avoided.
4. Precaution in wiring(UM1270D)
   Attention should be paid to a possible danger of short circuit of battery when there is a contact between the battery
   and the inlet or the switch.
5. Necessary tools for repair
    Flat driver          for removal of the safety cover
    Cross driver         for disassembly and assembly of the housing
    Soldering iron          for wiring
    Arbor press-for replacement of the blade holder
