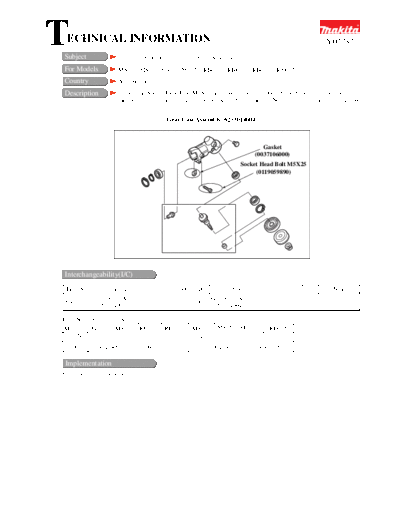

Text preview - extract from the document
TECHNICAL INFORMATION
Subject              Change of Components of Gear Case Assembly
                                                                                                     Y02732


For Models           MS220, MS221, MS250, MS251, RBC220, RBC221, RBC250, RBC251
Country              All countries
Description          Gasket and Socket Head Bolt M5X25 have been included in Gear Case Assembly in addition to
                     the current components as shown below. Accordingly, the part No. of Gear Case Assembly has been
                     changed.
                                       Gear Case Assembly (6253014004)



                                                                              Gasket
                                                                           (0037106000)
                                                                     Socket Head Bolt M5X25
                                                                          (0119059890)




 Interchangeability(I/C)
 Item No.       Current part                 Q'ty I/C          New part                      Q'ty       Note
           Gear Case Assembly                           Gear Case Assembly
 See below                                     1    Yes                                       1
           6253014003                                   6253014004

Item No. of Gear Case Assembly
Model    MS220 MS250         RBC220 RBC250         MS221     MS251 RBC221        RBC251
Item No.                                            003
Including    004, 005, 022, 089-097, 120                   004, 005, 021, 089-097, 120

 Implementation
From July,1995 production
