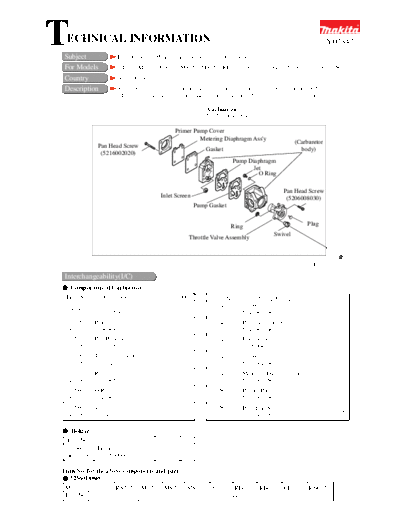

Image preview - the first page of the document
Y02342-WW-1


>> Download Y02342-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject             Introduction of Holder and Components of Carburetor
                                                                                                            Y02342

For Models           LT250, MS220, MS221, MS250, MS251, RBC220, RBC221, RBC250, RBC251, RST250
Country             All countries
Description          Component parts of Carburetor have become available except for Carburetor body.
                     Holder has been added, which had not been mentioned or illustrated in the original part list.

                                                           Carburetor
                                                      (Pt. No. 5236047004)

                                            Primer Pump Cover
                                                     Metering Diaphragm Ass'y
                                                                                              (Carburetor
              Pan Head Screw
                                                          Gasket                                body)
               (5216002020)
                                                                    Pump Diaphragm
                                                                          Jet
                                                                            O Ring

                                                                                         Pan Head Screw
                                      Inlet Screen                                        (5206008030)
                                                      Pump Gasket


                                                                    Ring                           Plug

                                                 Throttle Valve Assembly             Swivel



                                                                                                     Holder
Interchangeability(I/C)
    Components of Carburetor
 Item No.    Component part                    Q'ty         Item No.          Component part                   Q'ty
          Swivel                                               See      Gasket
See below                                       1                                                               1
          5236018040                                        next page   5246001030
   See    Plug                                                 See      Pump Diaphragm
                                                1                                                               1
next page 5206008110                                        next page   5246001040
   See    Pan Head Screw                                       See      Inlet Screen
                                                2                                                               1
next page 5206008030                                        next page   5016004010
   See    Throttle Valve Ass'y                                 See      Gasket
                                                1                                                               1
next page 5236047022                                        next page   5016004130
    See      Ring                                              See      Metering Diaphragm Ass'y                1
             5316005120                         1           next page   5316005250
 next page
    See      O Ring                                            See      Primer Pump Cover
                                                1                                                               1
 next page   5246001010                                     next page   5316005030
    See    Jet                                                 See      Pan Head Screw
                                                1                                                               4
 next page 5236029010                                       next page   5216002020

    Holder
 Item No.           Part                       Q'ty
    See      Holder
                                                1
 next page   5219500000

Item No. for the above components and part
   5236018040
Model    LT250 RST250 MS220 MS221 MS250                     MS251 RBC220 RBC221 RBC250 RBC251
Item No.      087                                               098
                                                                              Y02342
Interchangeability(I/C)                                                   (Page 1 of 2)
  5206008110
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      088                             099
  5206008030
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      089                             100
  5236047022
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      090                             101

  5316005120
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      091                             102

  5246001010
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      092                             103

  5236029010
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      093                             104

  5246001030
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      094                             105

  5246001040
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      095                             106

  5016004010
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      096                             107

  5016004130
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      097                             108

  5316005250
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      098                             109

  5316005030
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      099                             110

  5216002020
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      100                             111

  5219500000
Model    LT250 RST250 MS220 MS221 MS250   MS251 RBC220 RBC221 RBC250 RBC251
Item No.      101                             112

 Implementation
Already implemented
