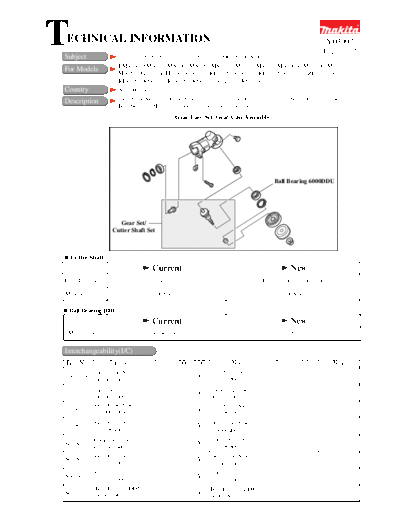

Image preview - the first page of the document
Y03992-WW-1


>> Download Y03992-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject              Change of Components of Gear Case Set/ Gear Case Assembly
                                                                                                       Y03992
                                                                                                      (Page 1 of 2)
                     EM4250, EM4251, MS20C, MS220, MS2201, MS221, MS250, MS250.4, MS2500, MS2501,
For Models
                     MS251, MS251.4, PE250, RBC201, RBC220, RBC221, RBC225, RBC226, RBC250, RBC251,
                     RBC252, RBC253, RBC255, RBC256, RBE250, RBK250
Country              All countries
Description          Gear Case Set/ Gear Case Assembly and their component parts (Gear Set, Cutter Shaft Set and
                     Ball Bearing DDU) have been changed for higher durability.
                                           Gear Case Set/ Gear Case Assembly




                                                                                   Ball Bearing 6000DDU




                      Gear Set/
                   Cutter Shaft Set



    Cutter Shaft
                                  Current                                                New
Heat Treatment                   Carburization                                 High frequency quenching

Material                              SCM415                                           SCM435

 Ball Bearing DDU
                                  Current                                                New
 Manufacturer                     unspecified                                            NSK

Interchangeability(I/C)
Item No.       Current part                      Q'ty I/C        New part                      Q'ty       Note
          Gear Case Set                                   Gear Case Set
See below                                         1   Yes                                       1
          6023012002                                      6023012003
            Gear Set                                      Cutter Shaft Set
     010                                          1   Yes                                       1
            6023013000                                    6023013001
            Gear Case Assembly                            Gear Case Assembly
     003                                          1   Yes                                       1
            6193001004                                    6193001005
            Gear Case Assembly                    1   Yes Gear Case Assembly                    1
     003
            6193004001                                    6193004002
          Cutter Shaft Set                                Cutter Shaft Set
See below                                         1   Yes                                       1
          6193003000                                      6193003001
See below Gear Case Assembly                      1   Yes Gear Case Assembly                    1
          6213017002                                      6213017003
          Gear Set                                        Cutter Shaft Set
See below                                         1   Yes                                       1
          6213021000                                      6213021001
          Ball Bearing DDU                                Ball Bearing DDU
See below                                         1   Yes                                       1
          0600109930                                      0600109910
                                                                                           Y03992
                                                                                          (Page 2 of 2)
Item No. for the changed parts
   6023012003
 Model   PE250 RBE250
 Item No. 005   005

  6193003001
Model   MS20C       MS220        MS221    MS250   MS251 RBC201 RBC220 RBC221 RBC250         RBC251
Item No. 004         089          089      089     089   004    089    089    089            089

  62130170003
Model EM4250 EM4251 MS2201 MS250.4 MS2500                  MS2501 MS251.4 RBC225 RBC226      RBC252
Item No. 017  017    003    017     003                     003    017     003    003         003

Model RBC253 RBC255 RBC256               RBK250
Item No. 003  003    003                   004

  6213021001
Model EM4250 EM4251 MS2201               MS250.4 MS2500    MS2501 MS251.4 RBC225 RBC226 RBC252
Item No. 023  023    012                  023     022       012    023     012    012    018

Model RBC253 RBC255 RBC256               RBK250
Item No. 021  012    012                   012

  0600109910
Model EM4250 EM4251 MS20C                MS220    MS2201   MS221    MS250   MS250.4 MS2500 MS2501
Item No. 024  024    007                  095      013      095      095     024     031    013

Model    MS251 MS251.4           PE250   RBC201 RBC220 RBC221 RBC225 RBC226 RBC250          RBC251
Item No. 095    024               011     007    095    095    013    013    095             095

Model RBC252 RBC253 RBC255 RBC256                 RBE250   RBK250
Item No. 027  030    013    013                    011       011

 Implementation
Since April 2000 production
