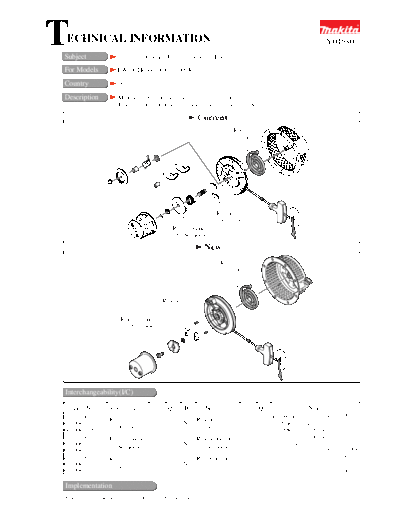

Image preview - the first page of the document
Y04530-WW-1


>> Download Y04530-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Ratchet, Ratchet Guide and Reel
                                                                                                           Y04530


For Models            EW200TR, G1200R, G2400R

Country               See below.

Description           Material of Ratchet has been changed from metal to plastic.
                      Ratchet guide and Reel complete have also been changed.

                                                     Current
                                                                   Reel
                                                               (2275012308)




                                                              Ratchet
                                                           (2275012608)
                                           Ratchet Guide
                                           (2275014008)
                                                        New
                                                               Reel
                                                           (2525012108)




                                       Ratchet
                                    (1615012508)
                       Ratchet Guide
                       (1615015008)




Interchangeability(I/C)

    Item No.       Current part           Q'ty I/C      New part              Q'ty                 Note
EW200TR: 132                                                                         EW200TR: Canada, USA
                   Ratchet                           Ratchet
G1200R: 223                                2    No                             2     G1200R: Canada, USA
G2400R: 238, 243
                   2275012608                        1615012508                      G2400R: Canada, USA,
EW200TR: 134       Ratchet Guide                   Ratchet Guide                             Austria, France,
G1200R: 225                                1    No 1615015008                  1            Netherlands
                   2275014008                                                                             Interchangeable
G2400R: 240
EW200TR: 127                                                                                                   as a set
                   Reel                            Reel Complete
G1200R: 220                                1    No 2525012108                  1
                   2275012308
G2400R: 236

Implementation
Already implemented since January, 1998 production
