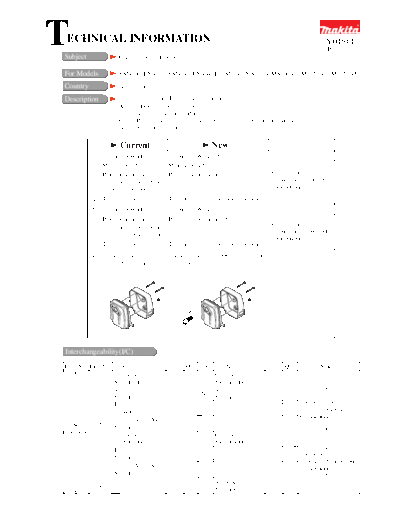

Image preview - the first page of the document
Y04544-WW-1


>> Download Y04544-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                     Change of Carburetor etc.
                                                                                                                Y04544
                                                                                                                (Page 1 of 2)


For Models                  EM4250, EM4251, EM4340, EM4340L, EM4341, MS251.4, MS350.4C, MS350.4U, MS351.4U

Country                     See next page.

Description                 For complying with EU emission regulation;
                            A) Carburetor has been changed.
                            B) Spark arrester has been added.
                            C) Jet, Plug and Throttle valve ass'y for repair have been stopped supplying.
                            See shown below for the detail.

                            Current                                New
             1       Carburetor WYL116         Carburetor WYL125
             2       Main jet #35.5            Main jet #34.5
             3       Plug for adjustment of    Plug is factory-adjusted.                    Component parts of
                     flow rate can be supplied                                              carburetor 5926002002/
                     for repair purpose.                                                    5926009000

             4       Throttle valve ass'y       Throttle valve ass'y is factory-adjusted.
             5       Carburetor WYL173          Carburetor WYL174
             6       Plug for adjustment of     Plug is factory-adjusted.
                     flow rate can be supplied                                              Component parts of
                     for repair repair purpose.                                             carburetor 5936002000/
                                                                                            5936004000
             7       Throttle valve ass'y       Throttle valve ass'y is factory-adjusted.

             8       Spark arrester is not      Spark arrester (5923008010) is installed
                     installed in muffler.      in muffler.




Interchangeability(I/C)
Item No. Line No.            Current part               Q'ty I/C     New part                   Q'ty          Note
                         Carburetor                              Carburetor
                 1                                       1   Yes                                  1
                         5926002002                              5926009000
                         Jet                                     Jet
                 2                                       1   No                                   1
                         5926002110                              5196002020
                         Plug                                                                          Component parts of
                 3                                       1                                             carburetor 5926002002/
                         5206008110
                         Throttle Valve Ass'y                                                          5926009000
   See           4                                       1
                         5926002010
next page.               Carburetor                              Carburetor
                 5                                       1   Yes 5936004000                       1
                         5936002000
                         Plug
                 6                                       1                                             Component parts of
                         5206008110
                                                                                                       carburetor 5936002000/
                         Throttle Valve Ass'y
                 7                                       1                                             5936004000
                         5936002020
                                                                   Spark Arrester
                 8                                                                                1
                                                                   5923008010
                                                                                                           Y04544
                                                                                                        (Page 2 of 2)

Item No. and destination
Line No.
                Part No.                         EM4250                     EM4251                EM4252
of page 1.
    1      Current:5926002002 Destination Austria, France, Italy,    Austria, France, Italy,   Spain, Australia
           New:5926009000                  Netherlands, Spain,       Netherlands, Spain,
                                           UK, Australia             UK, Australia
                               Item No.             121                        120                   120
    2      Current:5926002110 Destination Austria, France, Italy,    Austria, France, Italy,   Spain, Australia
           New: 5196002020                 Netherlands, Spain,       Netherlands, Spain,
                                           UK, Australia             UK, Australia
                               Item No.             130                        129                   129
    3      Current: 5206008110 Destination Austria, France, Italy,   Austria, France, Italy,   Spain, Australia
           New: N/A                        Netherlands, Spain,       Netherlands, Spain,
                                           UK, Australia             UK, Australia
                               Item No.             136                        135                   135
    4      Current: 5926002010 Destination Austria, France, Italy,   Austria, France, Italy,   Spain, Australia
           New: N/A                        Netherlands, Spain,       Netherlands, Spain,
                                           UK, Australia             UK, Australia
                               Item No.             134                        133                   133
    8      Current: N/A         Destination Austria, France, Italy, Austria, France, Italy,         Spain
           New: 5923008010                  Netherlands, Spain,     Netherlands, Spain,
                                            UK                      UK
                                Item No.             217                      216                    216


Line No.
                   Part No.                           EM4250                               EM4251
of page 1.
    5      Current: 5936002000 Destination     Austria, France, Italy,        Austria, France, Germany, Italy,
           New: 5936004000                     Netherlands, Spain, UK         Netherlands, Spain, UK
                               Item No.                  121                                 121
    6      Current: 5206008110 Destination     Austria, France, Italy,        Austria, France, Germany, Italy,
           New: N/A                            Netherlands, Spain, UK         Netherlands, Spain, UK
                               Item No.                  136                                 136
    7      Current: 5936002020 Destination     Austria, France, Italy,        Austria, France, Germany, Italy,
           New: N/A                            Netherlands, Spain, UK         Netherlands, Spain, UK
                               Item No.                  134                                 134

Implementation
Already implemented since August, 2004 production.
