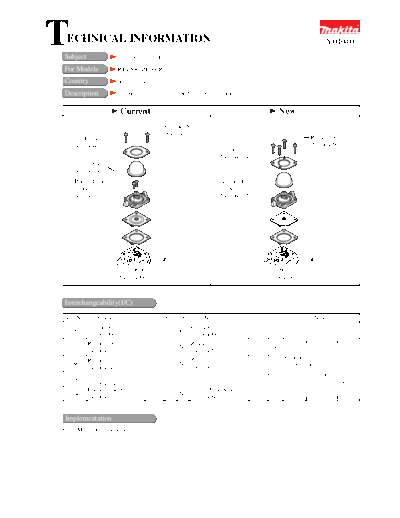

Image preview - the first page of the document
Y04040-WW-1


>> Download Y04040-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Carburetor
                                                                                                       Y04040


For Models            RBL500, PB500R
Country               All countries
Description           Carburetor has been changed as illustrated below.


                       Current                                                       New
                                        Retainer Screw
                                        (5416043330)
         Retainer                                                                                Retainer Screw
    (5416043460)                                                                                 (5416043910)
                                                                   Retainer
                                                              (5416043860)
           Scew
    (5416043340)
      Primer Base                                               Primer Base
        Assembly                                                  Assembly
    (5416043320)                                              (5416043920)




                        Carburetor                                              Carburetor
                      (5416043002)                                            (5416043003)



Interchangeability(I/C)

Item No.       Current part              Q'ty I/C      New part                 Q'ty               Note
           Carburetor                             Carburetor
  084                                     1   Yes                                1
           5416043002                             5416043003
           Retainer Screw                         Retainer Screw
  112                                     2   No                                 4
           5416043330                             5416043910
                                                  Retainer                             Constituent parts
           Retainer
  086                                     1   No                                 1      of Carburator
           5416043460                             5416043860
           Screw                                                                                    Interchangeable
  108                                     2                                                              as a set
           5416043340
           Primer Base Assembly                     Primer Base Assembly
  104                                     1   No                                 1
           5416043320                               5416043920


 Implementation
From Mar.,2001 production
