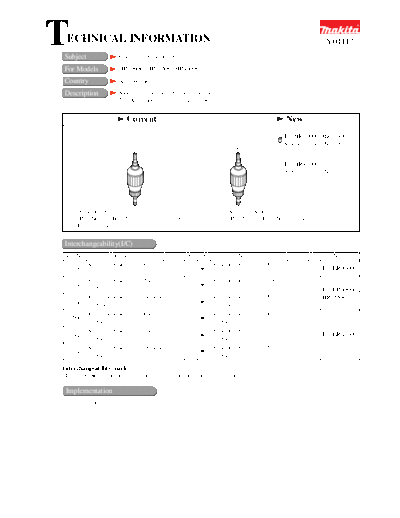

Y04112-WW-1


>> Download Y04112-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Armature Assembly
                                                                                                         Y04112


For Models             HR3000C, HR3550C, HR4500C

Country                All countries

Description            Sleeve has been added to Armature Assembly.
                       The Armature part no. remains same.


                          Current                                                       New
                                                                                        For HR3000C, HR3550C;
                                                                                        Sleeve 10, Item No. 98


                                                                                        For HR4500C;
                                                                                        Sleeve 12, Item No. 103




      Armature Assembly                                           Armature Assembly
      (Part No. and Item No. are as shown below):                 (Part No. and Item No. are as shown below.)
      It has no sleeve.

Interchangeability(I/C)
Item No.          Current part                   Q'ty I/C            New part                    Q'ty      Note
           Armature Assembly 100V                           Armature Assembly 100V
    114                                             1                                              1    For HR3000C
           513515-3                                         513515-3
           Armature Assembly 115V                           Armature Assembly 115V
    114                                             1                                              1
           513516-1                                         513516-1                                    For HR3000C,
           Armature Assembly 220-240V                       Armature Assembly 220-240V                  HR3550C
    114                                             1                                              1
           513518-7                                         513518-7
           Armature Assembly 100V                           Armature Assembly 100V
    094                                             1                                              1
           516840-1                                         516840-1
           Armature Assembly 115V                           Armature Assembly 115V
    094                                             1                                              1    For HR4500C
           516841-9                                         516841-9
           Armature Assembly 220-240V                       Armature Assembly 220-240V
    094                                             1                                              1
           516843-5                                         516843-5

Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

 Implementation
To be informed later
