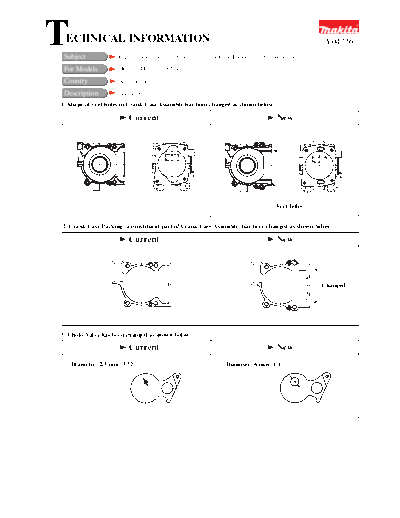

TECHNICAL INFORMATION
Subject              Change of Crank Case Assembly, Crank Case Packing and Choke Valve
                                                                                               Y04226
                                                                                                (Page 1 of 2)


For Models           DCS330TH, PS3300TH

Country              All countries
Description          See below.
1. Shape of vent holes in Crank Case Assembly has been changed as shown below.

                         Current                                                 New




                                                                                 Vent holes


2. Crank Case Packing (a constituent part of Crank Case Assembly) has been changed as shown below.

                         Current                                                 New




                                                                                              Changed




3. Choke Valve has been changed as shown below.

                         Current                                                 New
    Diameter: 2.5 mm (3/32")                                Diameter: 6 mm (1/4")
                                                                                     Y04226
                                                                                     (Page 2 of 2)


Interchangeability(I/C)

Item No.        Current part         Q'ty I/C        New part       Q'ty           Note
           Crank Case Assembly        1       Crank Case Assembly    1
  030                                     Yes
           TN00000270                         TN00004046
           Crank Case Packing                 Crank Case Packing           A constituent part of
  027                                 1   No                         1
           TN00000290                         TN00004047                   Crank Case Assembly
           Choke Valve                        Choke Valve                  Part No. remains
  093                                 1   Yes                        1
           TN00000480                         TN00000480                   the same.


Implementation
Implemented since June, 2002.
Serial No. will be informed later.
